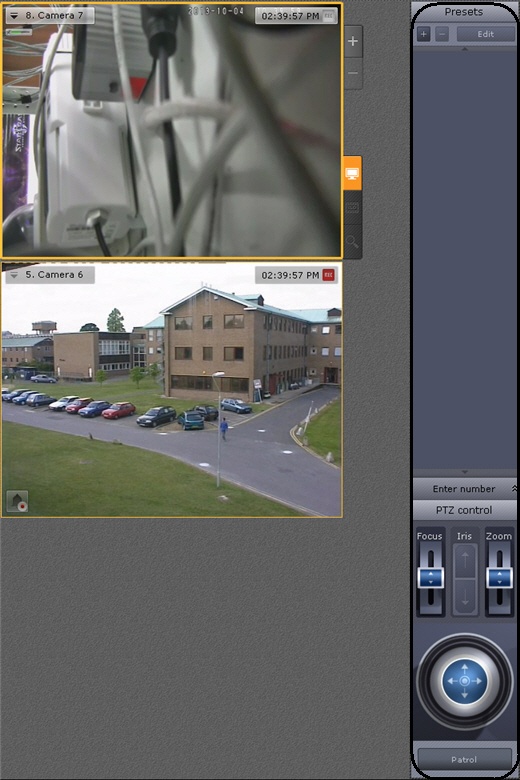

A PTZ video camera is controlled through the PTZ device control panel.

Note

You can use your mouse to change a camera lens' focus (see the section titled Changing the camera lens focus (Point&Click)).

 The user gains access to this panel when the viewing tile of a video camera in Live Video mode that supports a PTZ control interface is selected.

The following actions can be performed using the PTZ device control panel:

  1. Use presets.
  2. Modify the parameters of the iris, focus, and optical zoom.
  3. Modify the horizontal and vertical tilt angle of the video camera.
  4. Starting/stopping patrol mode.

Note

Setting presets is described in detail in the section The PTZ Control Panel.
