Setting Common Detection Zones

You can set a detection zone that is common to all situation analysis detection tools.

Detection zones are analyzed by all situation analysis detection tools. By default, the entire frame is a detection zone.

If you need to exclude complex zones in the camera field of view from analysis (leaves, water, etc.), set the detection zone as needed. To do this, follow the steps below:

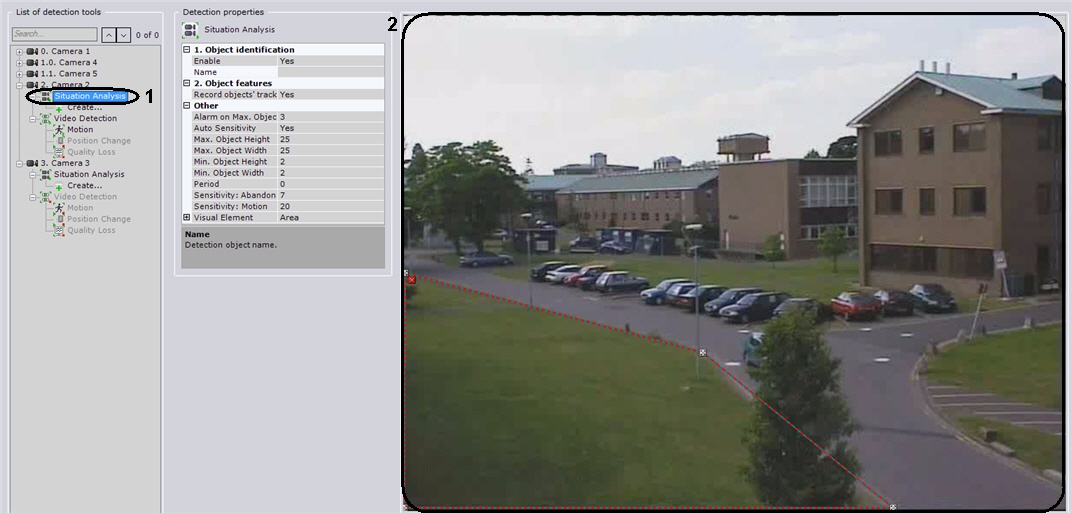

In the Detection Tools list, highlight a Situation analysis object (1) that offers a means of analyzing the situation in the field of view of the required video camera.

In the viewing tile (2), set the nodes of the closed area, in order, inside of which you want detection to be performed.

Note

When the area is being constructed, the nodes are connected by a two-color dotted line which outlines the area's borders

Action	Result
Left-click in the viewing tile	Creates a new area node
Right-click on a line	Creates a new area node
Right-click on a created node	Deletes the area node
Position the cursor on a node and hold down the left mouse button while you move the mouse	Moves the area node
Click the button.	Deletes the area

Attention!

You can set only one enclosed area.

Click the Apply button.

Creation of the detection zone is now complete.
