The Telemetry object is displayed in the device list as the child object of its respective PTZ camera.
To configure a camera's PTZ controls, the following must be true:

  1. Select the Telemetry object in the objects tree

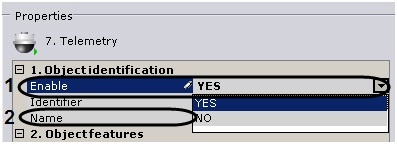

  2. Enable the PTZ device by selecting Yes in the Enable field (1).



  3. Enter the name of the PTZ device (2).

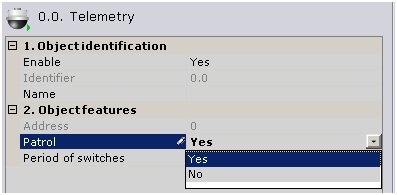

  4. Enable patrol mode. When patrolling is enabled, the video camera automatically changes its position along a route defined in its presets list



    Note

    Patrolling is enabled through the Patrolling button in the PTZ camera control panel (see the section titled Patrolling).

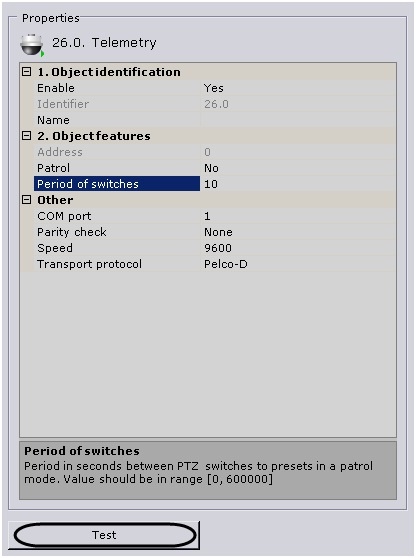

  5. Set the interval of time (in seconds) at which the PTZ device will switch between presets while in Patrol mode.



  6. Click the Apply button.

The PTZ device will then be switched to its assigned work mode.
To check the functioning of the PTZ device, click the Test button. If the PTZ device is configured correctly, it will turn one step and return to its original position.
