The Camera Search Panel panel lists all video cameras connected to Axxon Next VMS. It also allows the user to find online cameras.

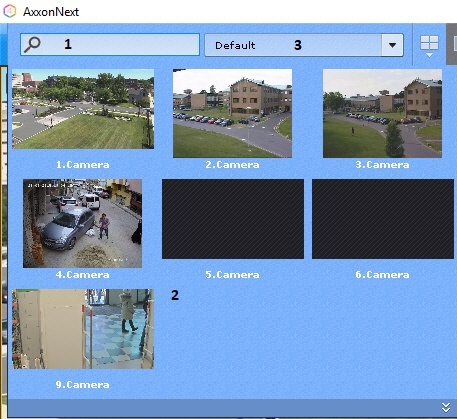

If you click the search bar (1),  a dropdown (2) opens that  lists all cameras within your Axxon domain.

Note

If the client is connected to multiple Axxon domains, cameras from the main Axxon domain are listed by default. To find cameras from another Axxon domain, select the domain from the dropdown list (3).

To search for a specific camera, enter its full  name or part of it into the search bar.

If you click a camera, a layout opens with the minimum number of cells for displaying the selected camera views.

Note

If the current layout contains the selected camera, the relevant viewing tile becomes active.

If there is no layout with the selected video camera, a new layout with a single cell is created.

To open the Objects Panel (see Objects Panel), click the  button.
