Setting a search interval follows the same procedure for all types of archive search.

By default, the search spans across video footage/archive tracks currently displayed on the timeline (see Navigating Using the Timeline).

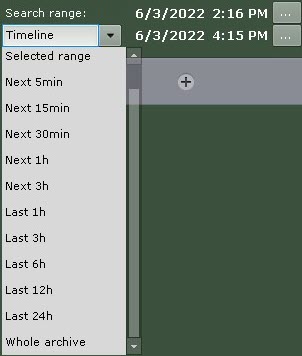

To alter the search interval, select the desired value from the Search Range dropdown list.

Search Range

Description

Whole Archive

Searches are performed across the entire Archive.

Timeline

Searches span across Archive tracks currently displayed on the timeline.

Range

Searches are performed within the interval currently selected on the timeline. You can set an interval using and buttons.

Last 1h/3h/6h/12h/24h

The searches will be performed within the last hour (or 3, 6, 12, 24 hours) of recorded footage.

Next 5min/15min/30min/1h/3h

The searches will be performed within the following interval: [specified start of the interval; specified start of the interval + 5min/15min/30min/1h/3h]. To set the beginning time of the interval, click .
