Web Client Configuration

To configure the Web Client, you need to:

Click in the top-right corner and select Preferences.

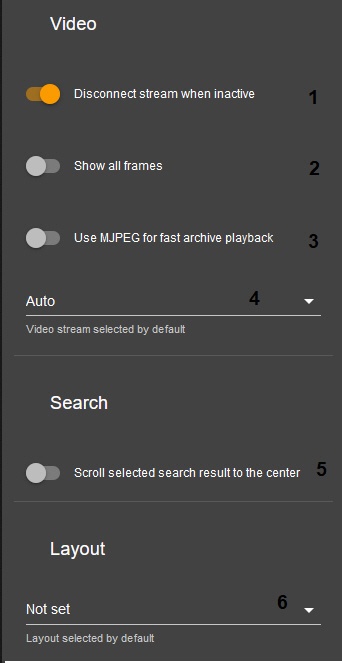

By default, switching to another tab or collapsing the browser window stops the transmission of video streams. To preserve the transmission, you can clear the corresponding parameter (1).
Attention!
This setting is common for all Web Client users in a particular browser.
If your layout contains several camera windows, only I-frames (key frames) will be displayed for H.264 cameras by default. Selecting a particular camera sets its window to display all frames. If you need to display all frames in H.264 video regardless of the camera status, activate the Show all frames option (2). This setting is common for all Web Client users in a particular browser.
By default, fast archive playback uses the H.264 codec. If required, you can use MJPEG codec by setting the Use MGPEG for fast archive playback parameter (3). This setting is common for all Web Client users in a particular browser.
Select the default video stream to be displayed for each camera of the current layout (4). This setting is common for all Web Client users in a particular browser.
Attention!
If you set the value to Auto, the lower bit rate stream will be always selected for display.
If you need to position the retrieved video in the center of the screen, activate the Scroll Selected search result to the center option (5). This setting is common for all Web Client users in a particular browser.
Select the default layout to be displayed after you launch the Web Client (6). This is a per-user setting for a given browser.
By default, the Cameras panel does not hide itself after you select a device. If you need to hide the panel, deselect the Pin the Camera List checkbox (7). This setting is common for all Web Client users in a particular browser.
Click the button.
