To configure the Web Client, you need to:

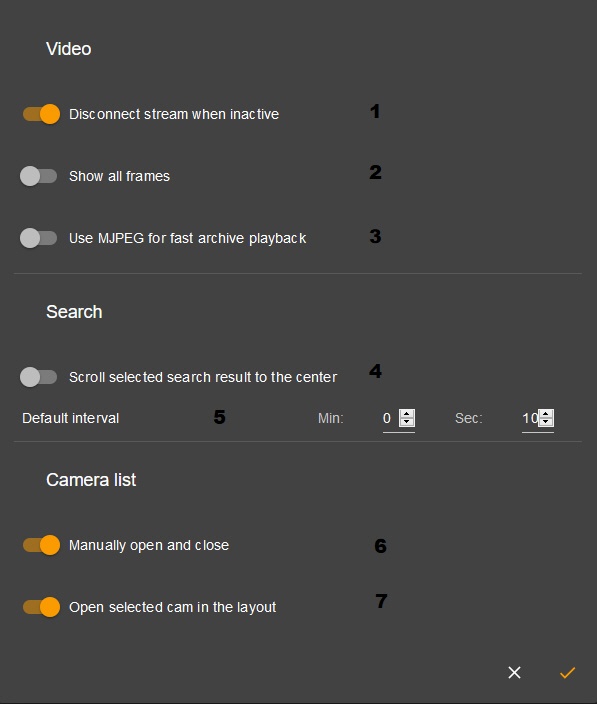

  1. Click  in the top-right corner and select Preferences.

  2. By default, switching to another tab or collapsing the browser window stops the transmission of video streams. To preserve the transmission, you can clear the corresponding parameter (1).

    Attention!

    This setting is common for all Web Client users in a particular browser.

  3. If your layout contains several camera windows, only I-frames (key frames) will be displayed for H.264 cameras by default. Selecting a particular camera sets its window to display all frames. If you need to display all frames in H.264 video regardless of the camera status, activate the Show all frames option (2).  This setting is common for all Web Client users in a particular browser.

  4. By default, fast archive playback uses the H.264 codec. If required, you can use MJPEG codec by setting the Use MGPEG for fast archive playback parameter (3).  This setting is common for all Web Client users in a particular browser.

  5. If you need to position the retrieved video in the center of the screen, activate the Scroll Selected search result to the center option (4).  This setting is common for all Web Client users in a particular browser.

  6. Set the default interval for Time Slice (5, see Types of Archive search available via the Web Client).

  7. By default, the Cameras panel does not hide itself after you select a device. If you need to hide the panel, deselect the Manually open and close checkbox (6).  This setting is common for all Web Client users in a particular browser.

  8. When you select a camera in  Cameras Panel, the layout featuring this camera's window opens. If there are several such layouts, then the one with fewer cells is selected. To expand camera view to full screen, disable  Open selected cam in the layout (7).

  9.  Click the  button.
