To set an automatic response to an FR event, do as follows:

  1. Create a macro (see Create Macros).

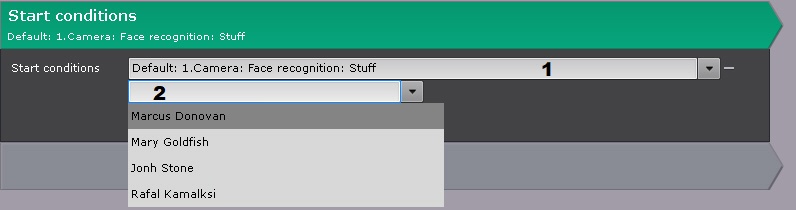

  2. As a starting condition, select the Face Recognition event and the desired list (1,see Configuring filters for event-driven macros).

  3. By default, the macro is triggered by recognition of any face from the list. If required, you can specify a particular person whose facial recognition will trigger the macro (2).

    Note

    To select another person, clear the 2 field and re-open the list.

  4. Program an action or a sequence of actions to be performed in response to an identification of a recognized face against the designated list (see Settings specific to actions).

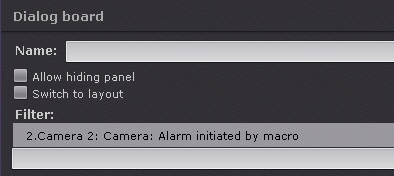

  5. If the response involves initiating an alarm, you can configure the Dialog Board to filter Alarm Initiated by Macro Command events (see Configuring the Dialog Board).

Examples of macros used for working with face lists
