For I/O modules or video surveillance control panels (see CCTV Keyboards), the Channel object is displayed as a child object of an IP Server in the object tree (see The IP Server Object).

To configure the Channel object, do as follows:

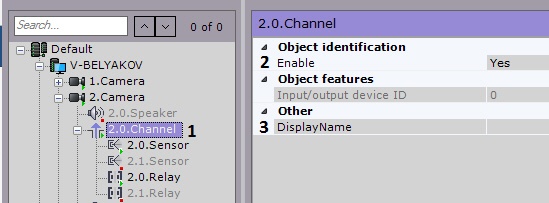

  1. Select the Channel object in the objects tree (1).

  2. Enable the object (2).

    Note

    When a channel object is enabled / disabled, all Input and Output child objects are automatically enabled / disabled.

  3. Enter the name of the channel (3).
  4. Click Apply.
