To add counters (see General information about the counters) to the map, do as follows:

  1. Open the Object panel (see Objects Panel) and go to the Programming tab.
  2. Drag and drop the counter to the map.
  3. To set up a counter on the map, do as follows:

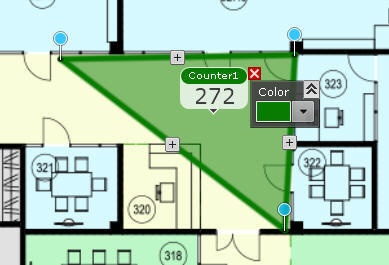

    1. Configure the counter coverage area on the map. You can do so by dragging the anchor points of the area . To add a new point, click  . To delete it, right − click on the point.

      Note

      To remove the counter from the map, click the point .

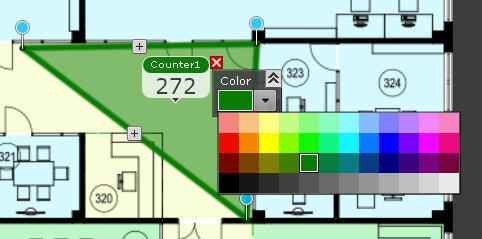

    2. Select the color of the counter.

      Note

      To hide/display the color settings, use and buttons.
