Attention!

At least one metadata source is required for displaying a heat map (for example, an object tracker — see General information on metadata).

The heat map allows you to check the movement activity in the frame and determine the areas where the objects move mostly.

To display a heat map, do the following:

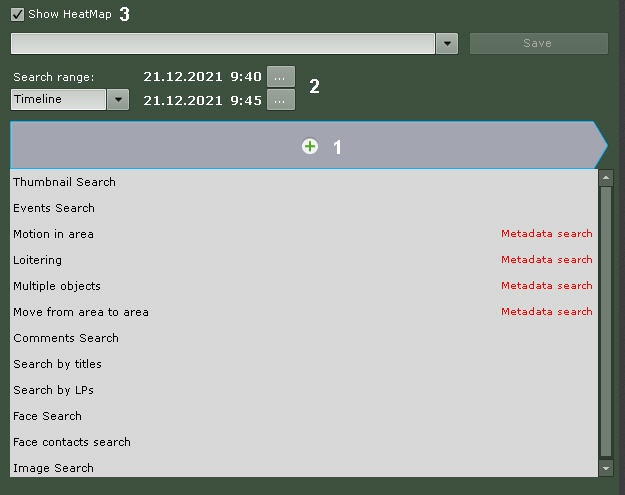

  1. Select the type of search using metadata (1, see LPR search, Search for similar face, Forensic Search for Fragments (MomentQuest)).
  2. Set the time period, according to the data from which the heat map should be generated (2, see Setting a search interval).
  3. Set the Show HeatMap checkbox (3).
  4. Click the Search button.

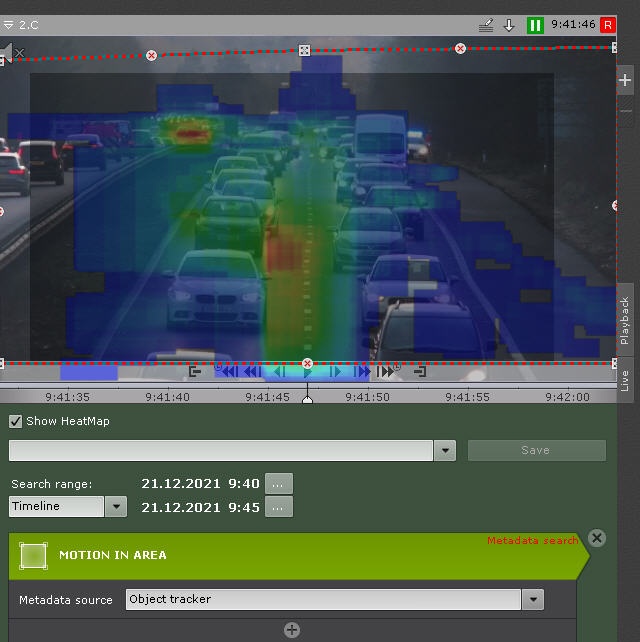

When the search is completed, a heatmap will be displayed on the map:

The colors on the map change from blue to red depending on the activity:

where blue is low activity, red is high.
