To configure the Handrail holding detection tool, do the following:

  1. Set common parameters (see Setting up common parameters for Pose detection tools).
  2. Click anywhere in the Preview window.

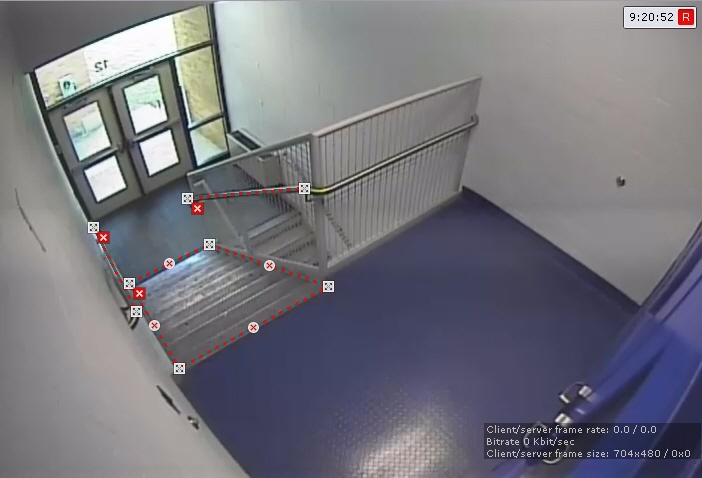

  3. Mark one or several handrails with lines (1).

    Attention!

    • If lens distortion makes the handrail non-linear, use several lines.
    • The presence of a person in the staircase zone is determined by their lower limbs.
  4. Set anchor points to specify the area where a person should hold the handrail (2).


Configuring the Handrail holding detection tool is complete.
