To view camera statistics, click in the top right corner, and select Statistics Panel.

Note

 Loading statistics from large number of cameras may take some time. The loading process is visualized by a progress indicator.

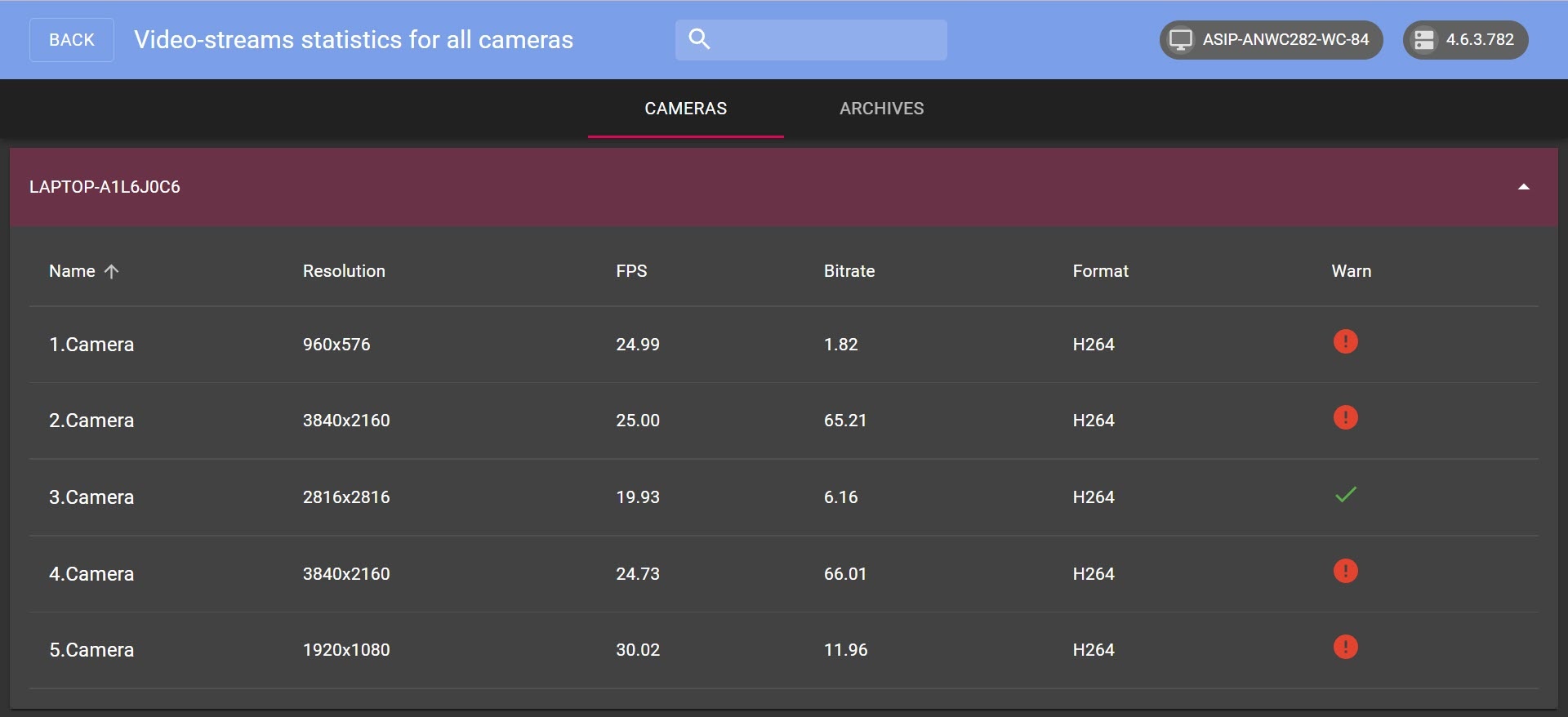

On the Cameras tab, the following parameters are displayed for each video stream of each camera:

  • resolution;
  • frame rate;
  • bit rate;
  • compression format.

If the bitrate exceeds the expected value, and there is more than 1Mbit per megapixel, the stream is marked with "".

If the bitrate exceeds the expected value, and there is more than 2Mbit per megapixel, the stream is marked with "".

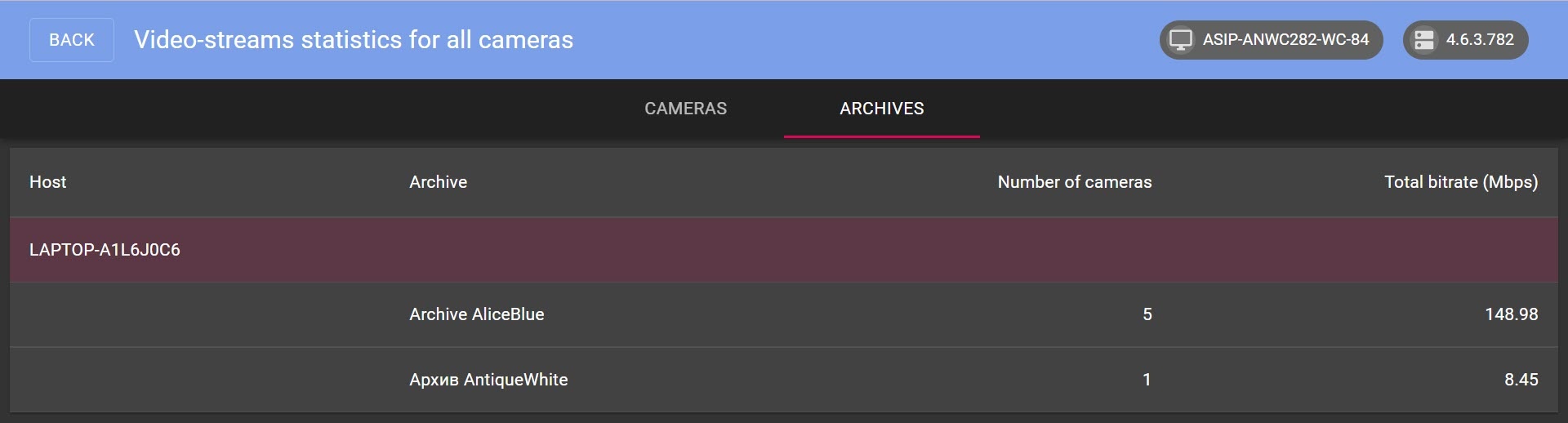

On the Archives tab, the following information is displayed for each Archive:

  • name;
  • number of linked cameras;
  • cumulative bit rate of linked cameras.

Note

 The indicator in the upper right corner displays the Axxon Next Web Client and Server version numbers.

To return to the previous page, click Back in the left upper corner of the screen.
