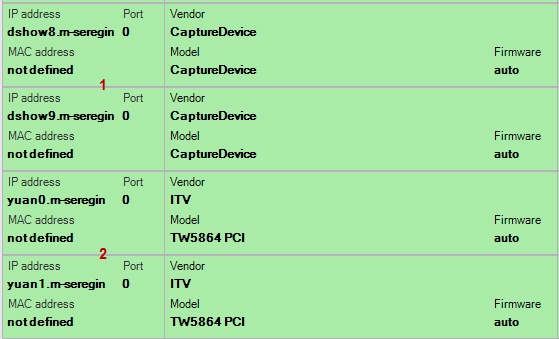

In Axxon Next, each WS-216 video capture card corresponds to two devices: manufacturer ITV, model TW5864 PCI (driver Yuan, 2) and manufacturer CaptureDevice, model CaptureDevice (driver DShow, 1).

Note

If you have a WS-216 card added through the Yuan driver,  in Windows Server OS you should activate: Desktop Experience Feature

Сameras connected to Axxon Next through the WS-216 card require the following configuration: add ITV tw5864 PCI device configuration (2) and select the checkbox Send settings to device (see The Video Camera Object).

Note

Axxon Next does not support receiving uncompressed video from WS-216 video capture cards.

For video cameras that are connected through WS-216 video capture cards, you can choose one of the two codecs for a video stream:

1. H.264 (configurable)

2. H.264 (minimum resolution, non-configurable)
