To configure alarm processing in the system, do the following:

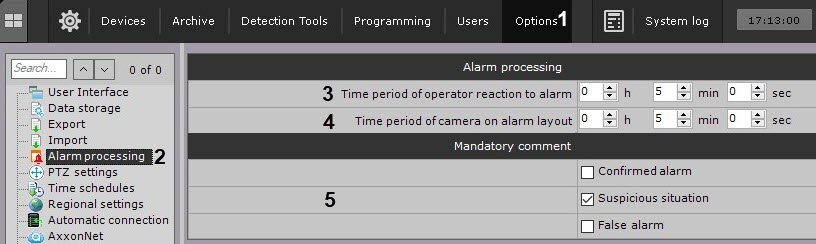

  1. Go to Settings → Options (1) → Alarm processing (2).

  2. In the Time period of operator reaction to alarm field, enter the time during which the alarm should be taken into processing, otherwise it will be assigned the Skipped status (3). The minimum value is 2 minutes.

    Note

    To take an alarm into processing, it is necessary to switch to the alarm management mode.

    Note

    After an alarm is taken into processing, the time for handling it is not limited.

  3. Set the maximum time for an alarm to stay on a special layout (4, see Working with Special layouts). After the specified time has elapsed, the alarm will be removed from the layout and its place will be taken by the next one, which has not yet been displayed on the layout.

  4. Select the alarm assessment, after accepting which the operator is required to enter a comment (5).

  5. Click the Apply button.

Configuration of alarm processing is now complete.
