To change the Server configuration, do the following:

  1. Execute the following command.

    sudo dpkg-reconfigure axxon-one
  2. Enter the Axxon-domain ID to which the Server should be added. To skip this step, press the Enter button.
  3. Change the Server node name.
  4. Specify the port range beginning for Server operation.
  5. Specify the number of ports for Server operation.
  6. Specify the database operation host.
  7. Restrict the visibility of Servers from various networks in the Servers list during the Axxon One setup. Possible values:
    1. 0.0.0.0/0 − Servers from all networks will be visible.
    2. 10.0.1.23/32,192.168.0.7/32 − only Servers from specified networks will be visible.
    3. 127.0.0.1 − only Servers from the local network will be visible.

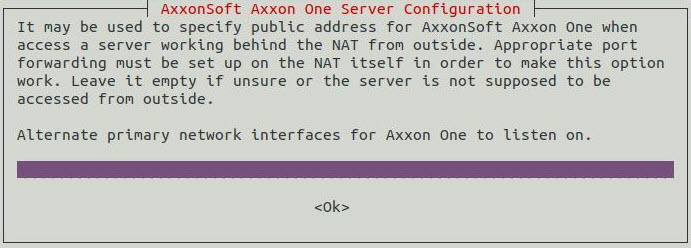

  8. Set the external address of the switch if the Server is located behind the NAT. Use the following settings format: IP Address1 or DNS Name1, IP Address2 or DNS Name2.
  9. Select the Server log level (see Configuring Logging levels).
