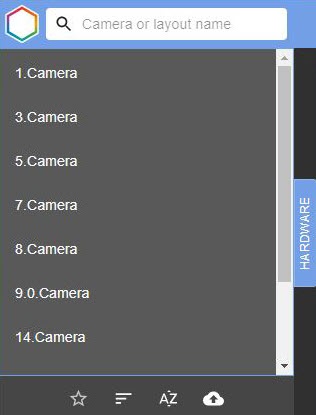

When you start the Web-Client, the cameras panel opens on the left. It shows a list of all connected devices.
By default, the panel includes all available cameras. You can create a list of selected cameras. Do the following:
- Hover the mouse cursor over the camera icon.
- Click
to add the camera to the list. The asterisk becomes filled
. Another click on the asterisk excludes the camera from the list.
Attention!
The list of selected cameras is common for all Web-Client users in a particular browser.
Additionally, you can bookmark cameras by preparing a list in an Excel file. To do it, follow the steps below:
- Create an Excel file containing two columns: id for camera IDs and name for camera names.
- Click
and select the file.
Attention!
After successful loading, only cameras listed in the file will remain bookmarked.
Click
to sort the camera list by ID or
to sort by name.
To search for a camera, enter the full or partial device name in the Camera or layout name box.
The cameras panel will display only the cameras that meet your search criteria. All matching items will be highlighted.
Note
When you add new cameras to your server configuration, they automatically appear in the Web-Client (no page reloading needed).

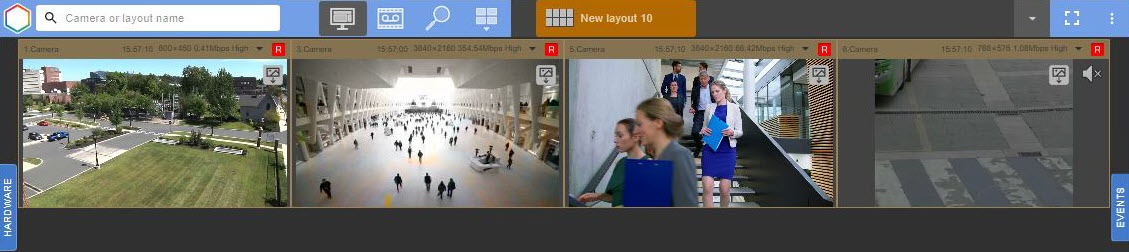

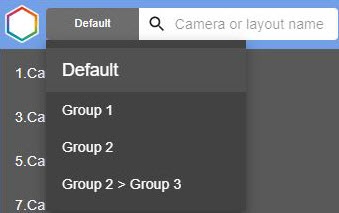

To set a group of cameras to be displayed, click the Default button and select the required group.

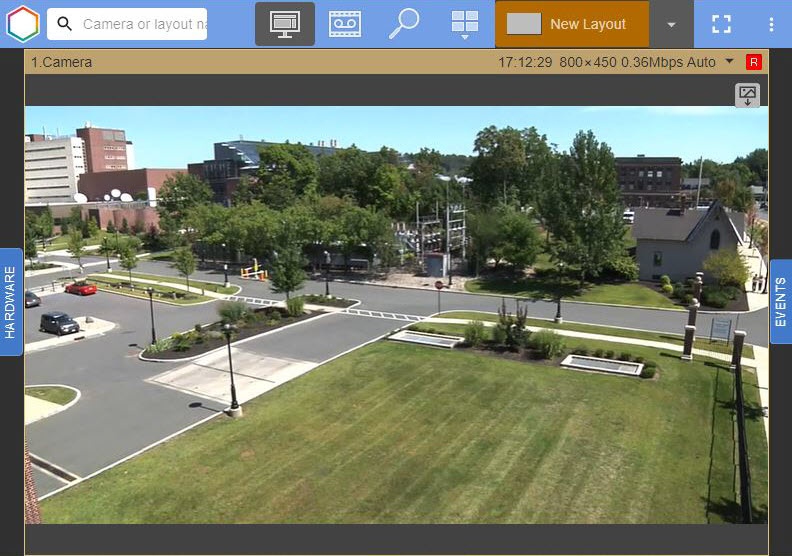

A newly selected camera window displays live video by default.
Each camera window upper right corner contains:
- time display (see Time Display in the main Client);
- video stream parameters;
- footage recording indicator.
