This opens the relevant layout and map with the camera marked on it.

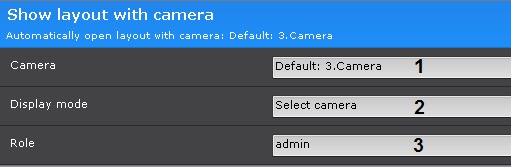

To configure the command, do as follows:

  1. Select a camera (1). An implicit selection of a video camera is also allowed − Camera that initiated command execution.

    For the Switch to archive mode (see step 2), you can select a group of cameras.

    Note

    In this software version, you cannot select a group of cameras for this action.

  2. Select the display mode (2).

    Display mode

    Description

    Select cameraThe camera tile is highlighted on the layout
    Zoom in cameraThe camera tile is highlighted on the layout, the viewing tiles take up 98% of the screen
    Zoom in and show map

    The camera tile is highlighted on the layout, the viewing tiles take up 50% of the screen, the map under the tiles shows the camera

    Switch to immersion modeImmersion mode, the viewing tiles take up 50% of the screen

    Switch to archive mode

    The camera window is highlighted on the layout and it is in archive mode. If a group of cameras is specified, then a layout is created with all the cameras in  archive mode

  3. Select the user roles, this command applies to (3).

This command uses the following algorithm:

  1. The system searches for layouts that contain the specified video camera and are accessible to the user.
  2. The system chooses the layout with the minimum number of cells to display the selected video camera.
  3. If the required layout does not yet exist, the system creates a new layout with a single video camera.
  4. The system switches to the selected layout.

  5. The specified process is running.
