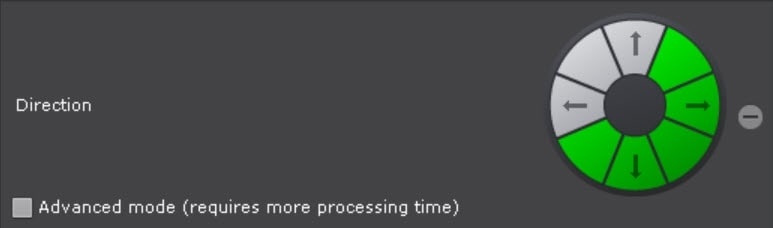

By default, when searching the archive, the system searches for movement in all directions. You can stop the search for movement in one or several specific directions.

To do this, click the direction in which you want to stop the search for movement with any mouse button. As a result, the sector corresponding to this direction is grayed out.

If necessary, repeat this action for other directions. To reactivate the search for inactive direction, click it again with any mouse button.

If incorrect search results occur, we recommend setting the Advanced mode (requires more processing time) checkbox. This increases the accuracy of the search, but the search process requires more time.

The required directions of an object movement are now set.
