You can use vector maps in Axxon One: Bitmap or vector image, Google Map, and OpenStreetMap.

Adding vector maps

In Axxon One, a Bitmap or vector image map is added by default. You cannot delete it.

To add vector maps as an interactive map to Axxon One, do the following:

  1. Select Settings → Options → Map providers.

  2. In the Map providers table, click the button. From the list, select the necessary map provider and click the button.

Adding a vector map to Axxon One is complete. The map of the selected provider will be displayed in the table and will be available for editing.

To cancel adding a vector map or to delete a map, click the button.

Bitmap or vector image

Bitmap or vector image is an image that will be used as a graphic plan of the protected territory.

To configure the map display as a bitmap or vector image in Axxon One, do the following:

  1. If necessary, change the map name in the Name field or leave the default name.
  2. In the Enable field, select the Yes value to enable Bitmap or vector image.

  3. Set the Minimum zoom and Maximum zoom of the map. The values must be in the range [0; 19].

  4. In the Default zoom filed, set the scale of the map that will be displayed by default. The value must be in the range [0; 19].

  5. In the Default center field, set the coordinates of the map center that will be displayed by default:
    1. X—latitude;
    2. Y—longitude.
  6. Click the Apply button. To cancel the changes, click the Cancel button.
  7. Restart the Axxon One Client (see Stopping the client, Starting the client).
  8. Configure the map display (see Adding a new map).

Configuring the display of the Bitmap or vector image map in Axxon One is complete.

Google

You can use Google Map in Axxon One. To use Google Map as an interactive map in Axxon One, do the following:

  1. Sign up with Google Maps and purchase a license:

    1. Sign up with Google Cloud. To do this you need to contact one of Google Cloud partners: https://cloud.withgoogle.com/partners/, which will give you access to the Google Cloud console (user account) after signing up.

      Note

      Individuals can sign up with Google Cloud on their own. In this case, the Credit Card will be used for payment.

    2. Subscribe and, in the account, find a link to Api Key that you will need to use for each Axxon One Client. Charging will be done by subscription, the company will receive invoices for payment. You can see the prices here: https://developers.google.com/maps/billing-and-pricing/pricing?hl=en.
    3. Configure Google Maps using 2D Tiles.
  2. Configure Google Map display in Axxon One:
    1. In the General section:
      1. If necessary, change the provider name in the Name field or leave the default name.
      2. Enter the received ApiKey.
    2. Select the type of the map display:
      1. Google Hybrid—satellite cartographic representation combined with a simple and generalized cartographic representation.

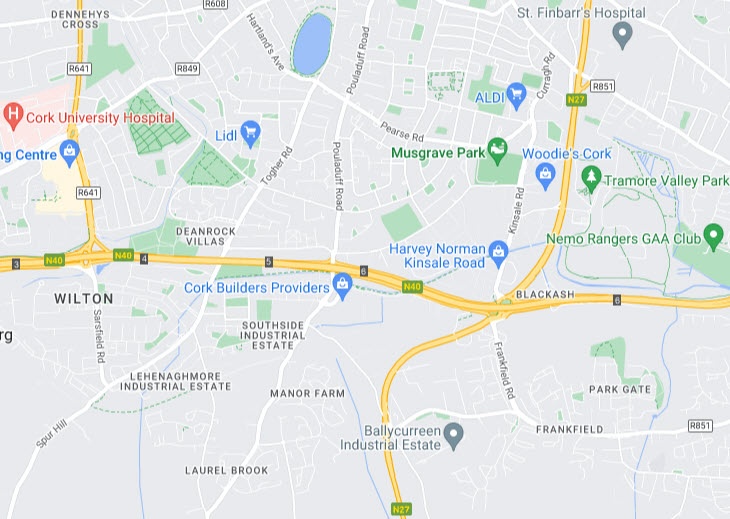

      2. Google Map—simple and generalized cartographic representation.

      3. Google Satellite—satellite cartographic representation.

        Note

        In Axxon One, you can use all three types of Google maps to display on the layout (see Adding a new map).



    3. Configure the settings of the selected type of the map display:
      1. If necessary, change the map name in the Name field or leave the default name.

      2. In the Enable field, select the Yes value to enable Google Hybrid/Google Map/Google Satellite

      3. Set the Minimum zoom and Maximum zoom of the map. The values must be in the range [0; 19].
      4. In the Default zoom filed, set the scale of the map that will be displayed by default. The value must be in the range [0; 19].
      5. In the Default center field, set the coordinates of the map center that will be displayed by default:
        1. X—latitude (8);
        2. Y—longitude (9).
    4. Click the Apply button. To cancel the changes, click the Cancel button.
    5. Restart the Axxon One Client (see Stopping the client, Starting the client).
    6. Configure the map display (see Adding a new map).

Configuring the display of Google Map in Axxon One is complete.

OpenStreetMap

Axxon One uses geodata from the OpenStreetMap provider via the Mapbox service. To use OpenStreetMap as an interactive map in Axxon One, do the following:

  1. Purchase a license for Tilequery API from the Mapbox provider: https://www.mapbox.com/pricing/#gltile and get an ApiKey.

  2. Configure the display of OpenStreetMap in Axxon One:
    1. If necessary, change the map name in the Name field or leave the default name.
    2. Enter the received ApiKey.
    3. In the Enable field, select the Yes value to enable OpenStreetMap.

    4. Set the Minimum zoom and Maximum zoom of the map. The values must be in the range [0; 19].

    5. In the Default zoom filed, set the scale of the map that will be displayed by default. The value must be in the range [0; 19].

    6. In the Default center field, set the coordinates of the map center that will be displayed by default:
      1. X—latitude;
      2. Y—longitude.
    7. Click the Apply button. To cancel the changes, click the Cancel button.
  3. Restart the Axxon One Client (see Stopping the client, Starting the client).
  4. Configure the map display (see Adding a new map).

Configuring the display of OpenStreetMap in Axxon One is complete.
