To protect a record, create a bookmark – a special case of the operator comment (see 운영자 코멘트).

To create a bookmark, do as follows:

  1. Select the required camera on the layout and switch to the archive mode (see 아카이브 모드로 전환).

    Note

    If you need to protect the same time interval in multiple camera archives, switch the necessary cameras to the archive mode.

  2. Set the protected time interval on the timeline in the archive with the and buttons (see 타임라인).
  3. Click the button in the video surveillance window.

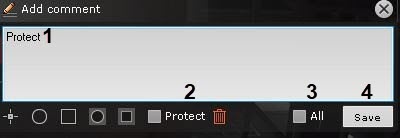

  4. Enter a comment (1).
  5. Set the Protect checkbox (2)
  6. Set the All (3) checkbox if it is necessary to protect the specified interval from all cameras currently in the archive mode.
  7. Click the Save button (4).

The newly created bookmark will appear on the timeline.

The protected interval will be highlighted in light grey, and its beginning will be marked with .

Click the button to delete the specified protected interval in the archive.
