Archive navigation can be performed using the time scales.

Time scales contain color indicators of records presence per period – tracks.

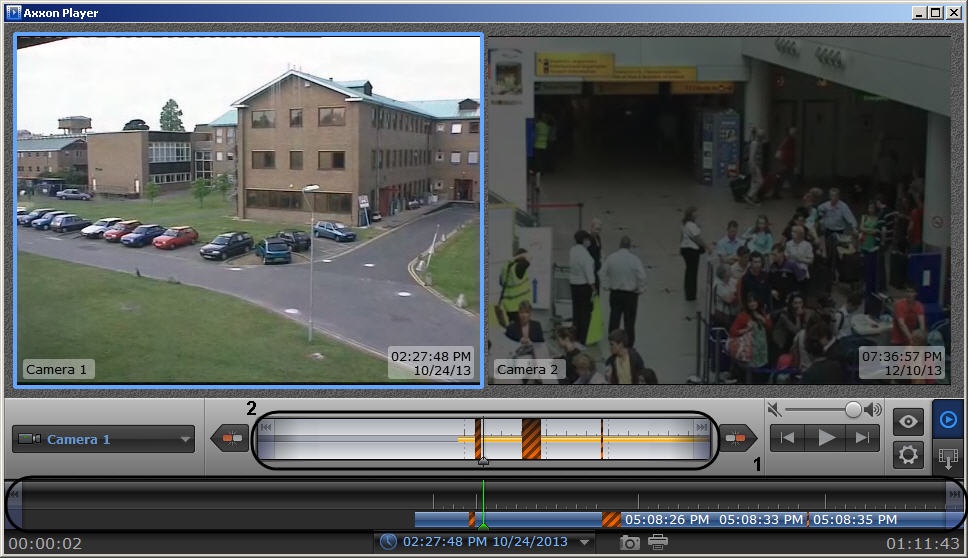

There are following time scale types in the AxxonPlater.exe utility:

  1. Main time scale (1). This scale displays tracks from all cameras selected to view.
  2. Additional time scale (2). This scale displays tracks from the active camera.

Archive navigation is performed in two ways:

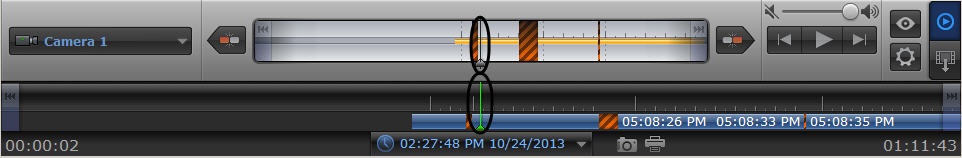

  1. By dragging the scale relatively the indicator. When the indicator is matched to the point on the time scale then there is going to the moment on the record corresponding to this point.
  2. By left-clicking the mouse on required period on the time scale.

Going in the main and additional scale is sincronized.

It is possible to size time scales. Zoom in and zoom out of time scales are performed using the scroll wheel in required area of the time scale.
