Setting up the Search by captions window display

To set up the Search by captions window, the following parameters should be specified:

coordinates – the position and size of the window;
monitor – the monitor for displaying the captioner search window;
overlay type – the type of the overlay of the synchronous display of video image and search results;
print reports – the user can print the search results.
video source – the source of the video for search.

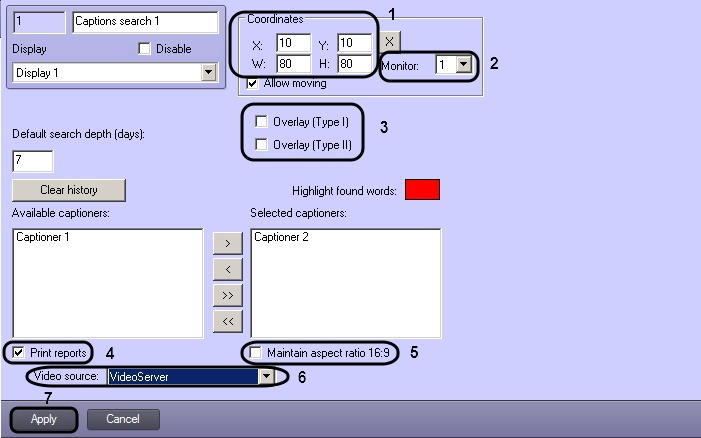

To set up the Search by captions window, do the following:

Specify the position and size of the Search by captions window: X is the indent relative to the left border of the video image, Y is the indent relative to the top border of the video image, W is the window width, H is the window height. (1)
Note.

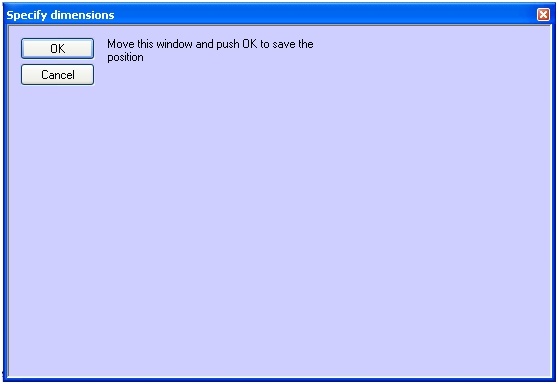

The coordinates can be set up using the visual method. Click the button and use the mouse to set the location and size of the sample window, then click OK. The coordinates of the sample window will be filled in the X, Y, W and H fields automatically.
Select the monitor to display the Search by captions window from the Monitor drop-down list (2).
Set the overlay type by checking the Overlay (Type I) or Overlay (Type II) checkbox (3).
Note.
As a rule, optimal mode of processing the video is Overlay (Type II). If this mode is not supported by video card, Overlay (Type I) should be selected or the Overlay should be completely disabled.
To allow the operator to print the search results, check the Print reports checkbox (4).
Set the Maintain aspect ration of 16:9 to display the archive in 16:9 format (5).
Click Apply to save the changes (7).

The Search by captions window is now set.

Note.

To clear the history of user queries in the Search by captions window, click the Clear history button.
