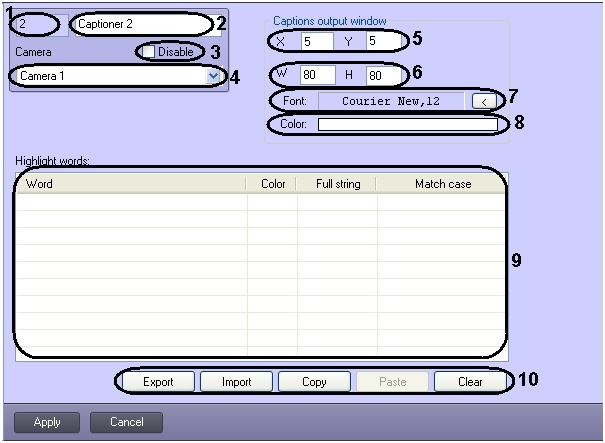

The figure  shows the Captioner object settings panel.

The table describes the elements in the Captioner settings panel

No

Element name

Element type

Description

Data type

Default value

Value range

1

Number

Auto

Identification number of the object in the system

Whole positive numbers

-

Depends on the number of objects

2

Name

Text field

Object name

Latin, Cyrillic and special symbols

Titles database

Case-insensitive string of any symbols

No more than 60 symbols

3

Disable

Checkbox

Object status

Boolean

No

Yes – the object is disabled (not used)

No – the object is enabled

4

Camera

Drop-down list

Parent Camera object

Names of existing Camera objects

Parent camera name

Depends on the number of existing Camera objects

The Titles area group

5

X

Text field

X-coordinate of the upper left corner (left indent)

% of video image width

5

0 to 100

Y

Text field



Y-coordinate of the upper left corner (top indent)

% of video image height

5

0 to 100

6

W

Text field

Titles display area width

% of video image width

80

0 to 100

H

Text field

Titles display area height

% of video image height

80

0 to 100

The Font group

7

Font

Auto

Titles font sample

Text line

Courier,12

Depends on the installed fonts

<

Button

Selecting the titles font

(standard Windows font selection box opens)

-

–

-

The Color group

8

Color

Auto

The titles text color

Color palette

White

Depends on the system color palette

Color

Double-click

Selecting the titles text color

(standard Windows color selection dialog box)

-

-

-

The Word highlighting table

9

Word

Text field

The word to highlight

Text line

–

String of any symbols

Color

Double-click

Highlighting color

Color palette

Turquoise

Depends on the system color palette

Whole line

Checkbox

Highlights the whole line

Boolean

No

Yes – the whole line is highlighted

No – the word only is highlighted

Match case

Checkbox

Match case

Boolean

No

Yes – case-sensitive search

No – case-insensitive search

10

Export

Button

Exporting the table into a file

–

–

–

Import

Button

Importing the table from a file

–

–

–

Copy

Button

Copy the table contents to the clipboard

–

–

–

Paste

Button

Paste the clipboard into the table

–

–

–

Clear

Button

Clear the table

–

–

–
