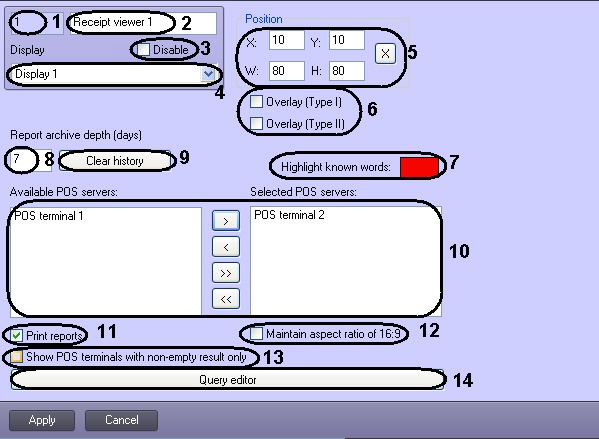

The figure shows the Receipt viewer object settings panel.
The table describes the elements in the Receipt viewer settings panel
No | Element name | Element type | Description | Data type | Default value | Value range |
1 | Number | Auto | Identification number of the object in the system | Whole positive numbers | - | Depends on the number of Receipt viewer objects |
2 | Name | Text field | Object name | Latin, Cyrillic and special symbols | Receipt viewer | Case-insensitive string of any symbols No more than 60 symbols |
3 | Disable | Checkbox | Object status | Boolean | No | Yes – the object is disabled (not used) No – the object is enabled |
4 | Screen | Drop-down list | Parent Screen object | Names of existing Screen objects | Parent Screen objects name | Depends on the number of Screen objects |
The Position group | ||||||
5 | X | Text field
| X coordinate of the upper left corner of the window | % of screen width | 10 | 0 to M*100, where M – number of installed monitors |
Y | Text field
| Y coordinate of the upper left corner of the window | % of screen height | 10 | 0 to M*100, where M – number of installed monitors | |
W | Text field
| Window width | % of screen width | 80 | 0 to M*100, where M – number of installed monitors | |
H | Text field | Window height | % of screen height | 80 | 0 to M*100, where M – number of installed monitors | |
X | Button | Open sample window for visual setting ot position and size | - | - | - | |
The Overlay group | ||||||
6 | Overlay (Type I) | Checkbox | Overlay I video display mode | Boolean | No | Yes – use Overlay I No – do not use Overlay I |
Overlay (Type II) | Checkbox | Overlay II video display mode | Boolean | No | Yes – use Overlay II No – do not use Overlay II | |
The Word highlighting group | ||||||
7 | Color | Auto | Word highlighting color | Color palette | Red | Depends on the system color palette |
Color | Double-click | Word highlighting color selection (open standard Windows color selection dialog box) | - | - | - | |
8 | Report archive depth | Text field | Receipts database search depth | Days | 7 |
|
9 | Clear | Button | Clears the history of user queries | – | – | – |
The POS-terminals group | ||||||
10 | Available POS-terminals | Auto | The list of available POS-terminals | – | – | – |
Selected POS-terminals | Auto | The list of selected POS-terminals | – | – | – | |
<, >, >>, << | Button | Selecting the POS-terminals | – | – | – | |
11 | Print reports | Checkbox | Printing the reports | Boolean | Yes | Yes – operator can print query results No – operator cannot print query results |
| 12 | Maintain aspect ratio of 16:9 | Checkbox | Maintain aspect ratio of 16:9 | Boolean | No | Yes – dispalys archive in 16:9 format No – displays archive in 4:3 format |
13 | Show POS-terminals with non-empty results only | Checkbox | Show POS-terminals with non-empty search results only | Boolean | No | Yes – show POS-terminals with non-empty results only No – show all POS-terminals |
14 | Query editor | Button | Open the user query editor | – | – | – |
