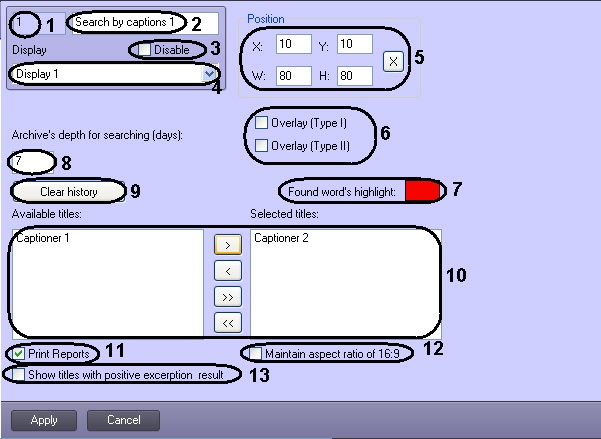

The figure shows the Search by captions object settings panel.
The table describes the elements in the Search by captions settings panel
No | Element name | Element type | Description | Data type | Default value | Value range |
1 | Number | Auto | Identification number of the object in the system | Whole positive numbers | - | Depends on the number of existing Search by captions objects |
2 | Name | Text field | Object name | Latin, Cyrillic and special symbols | Search by captions | Case-insensitive string of any symbols No more than 60 symbols |
3 | Disable | Checkbox | Object status | Boolean | No | Yes – the object is disabled (not used) No – the object is enabled |
4 | Screen | Drop-down list | Parent Screen object | Names of existing Screen objects | Parent Screen name | Depends on the number of Screen objects |
The Position group | ||||||
5 | X | Text field
| X coordinate of the upper left corner | % of screen width | 10 | 0 to M*100, where M is the number of installed monitors |
Y | Text field
| Y coordinate of the upper left corner | % of screen height | 10 | 0 to M*100, where M is the number of installed monitors | |
W | Text field
| Window width | % of screen width | 80 | 0 to M*100, where M is the number of installed monitors | |
H | Text field | Window height | % of screen height | 80 | 0 to M*100, where M is the number of installed monitors | |
X | Button | Open the size and position sample window | - | - | - | |
The Overlay group | ||||||
6 | Overlay (Type I) | Checkbox | Overlay I video display mode | Boolean | No | Yes – use Overlay I No – do not use Overlay I |
Overlay (Type II) | Checkbox | Overlay II video display mode | Boolean | No | Yes – use Overlay II No – do not use Overlay II | |
The Word highlighting group | ||||||
7 | Color | Auto | Word highlighting color | Color palette | Red | Depends on the system color palette |
Color | Double-click | Word highlighting color selection (opening the standard Windows color selection dialog box) | - | - | - | |
8 | Default search depth | Text field | Captioner search depth | Days | 7 |
|
9 | Clear | Button | Clears the history of user queries | – | – | – |
The Captioner group | ||||||
10 | Available captioners | Auto | The list of available captioners | – | – | – |
Selected captioners | Auto | The list of selected captioners | – | – | – | |
<, >, >>, << | Button | Selecting the captioners | – | – | – | |
11 | Print reports | Checkbox | Print reports | Boolean | Yes | Yes – operator can print query results No – operator cannot print query results |
| 12 | Maintain aspect ratio of 16:9 | Checkbox | Maintain aspect ratio of 16:9 | Boolean | No | Yes – dispalys archive in 16:9 format No – displays archive in 4:3 format |
13 | Show only non-empty fetching | Checkbox | Show captioners with non-empty search results only | Boolean | No | Yes – show captioners with non-empty results only No – show all captioners |
