The POS terminal object settings panel

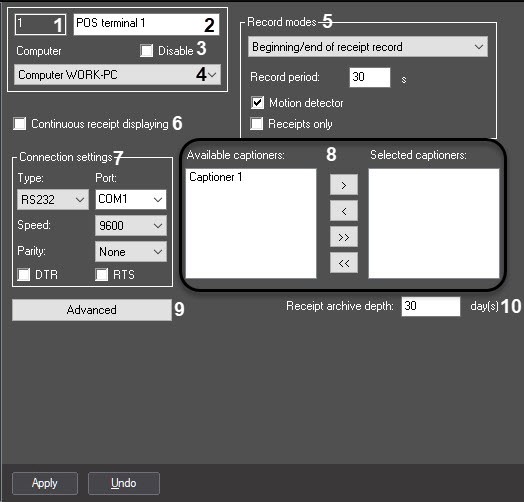

The figure shows the POS terminal object settings panel.

The table describes the elements in the POS terminal settings panel.

No	Element name	Element type	Description	Data type	Default value	Value range
1	Number *	Auto	Identification number of the object in the system	Whole positive numbers	-	Depends on the number of existing POS terminal objects
2	Name *	Text field	Object name	Latin, Cyrillic and special symbols	POS terminal	Case-insensitive string of any symbols. No more than 60 symbols
3	Disable	Checkbox	Object status	Boolean	No	Yes – the object is disabled (not used). No – the object is enabled
4	Computer	Drop-down list	Parent Computer object	Names of existing Computer objects	Parent computer name	Depends on the number of existing Computer objects
The Recording modes group
5	Recording modes	Drop-down list	The recording mode	Existing recording modes	Record on receipt beginning/end	Record on receipt beginning/end. Continuous recording. Save one frame per receipt
	Record period__s	Text field	The recording time interval	Seconds	30
	Motion detector	Checkbox	Record on motion detector activation	Boolean	Yes	Yes – use motion detector. No – do not use motion detector
	Receipts only	Checkbox	Receipt display option	Boolean	No	Yes – only data of the receipts between the beginning and end of the receipts are displayed on the screen and included in the Captioner. No – all the data of the processed receipts are displayed on the screen and included in the Captioner

6	Continuous receipt displaying	Checkbox	Continuous receipt displaying option	Boolean	No	Yes – there is a space between the receipts so that they do not overlap on the screen. No – the previous receipt becomes hidden when a new receipt is displayed
The Connection settings group
7	Type	Drop-down list	Connection type	Supported protocols	RS232	Depends on the number of supported protocols
	Port	Drop-down list	Port number	Available ports	COM1	Number of available ports
	Speed	Drop-down list	Connection rate in accordance with RS232 protocol	Supported rates	9600	Depends on the number of supported rates in accordance with RS232 protocol
	Parity	Drop-down list	Parity mode for RS232 protocol	Supported parity modes	None	Depends on the number of supported parity modes in the RS232 protocol
	DTR	Checkbox	DTR option for RS232 protocol	Boolean	No	Yes – use DTR control signal in the RS232 protocol. No – do not use DTR control signal in the RS232 protocol
	RTS	Checkbox	RTS option for RS232 protocol	Boolean	No	Yes – use RTS control signal in the RS232 protocol. No – do not use RTS control signal in the RS232 protocol
The Captioners * group
8	Available captioners	Auto	The list of available captioners	–	–	–
	Selected captioners	Auto	The list of selected captioners	–	–	–
		Button	Selecting the captioners	–	–	–
9	Advanced	Button	Opening additional POS terminal object settings	–	–	–
10	Receipt archive depth__day(s)	Text field	The size of the receipts archive	Days	30

* The element's name is not displayed in the settings panel.
