Traffic statistic by vehicles groups

The Traffic statistic by vehicles groups report allows getting statistical data for each specified group of vehicles. Vehicles group is a set of several vehicles types.

Note

The Traffic statistic by vehicles groups report is related to the Traffic detector and Vehicle processor modules (it is necessary to create the corresponding object in the Intellect software).

To create the Traffic statistic by vehicles groups report, do the following:

Select the Traffic statistic by vehicles groups report type by one of the following ways:

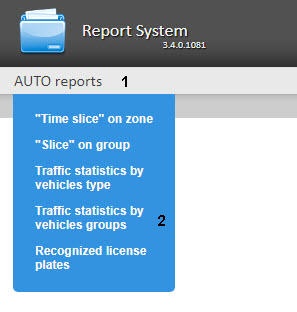

1. Hover over the AUTO reports tab (1), and click the Traffic statistic by vehicles groups link in the menu (2).

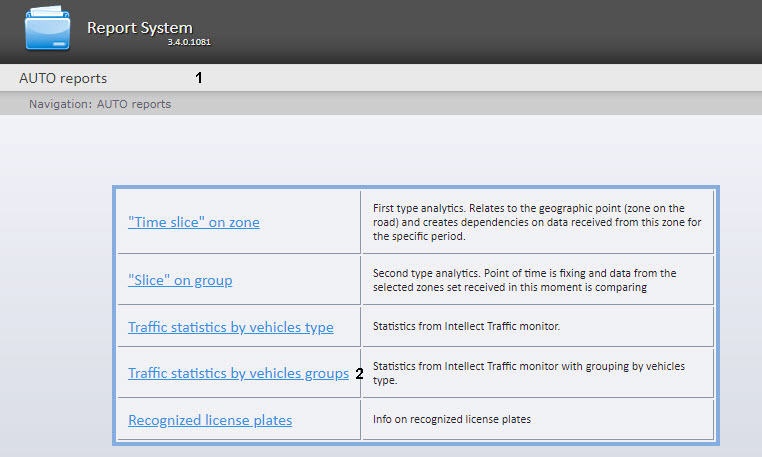

2. Click the AUTO reports tab (1), wail till the table appears, then click the Traffic statistic by vehicles groups link (2).
As a result the dialog box for specifying the report parameters will be displayed.

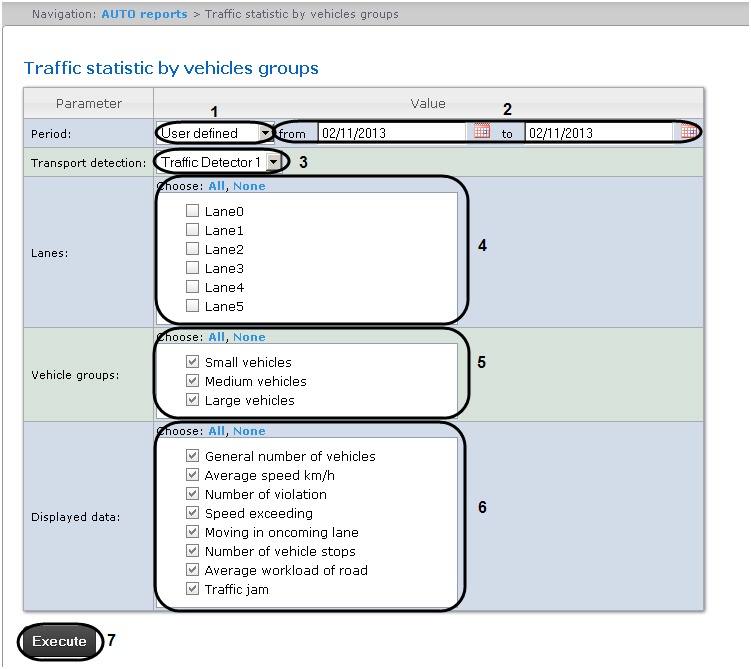

Specify the report parameters in the following way:
1. In the Period drop-down list select the time period for which the report is to be created (1).

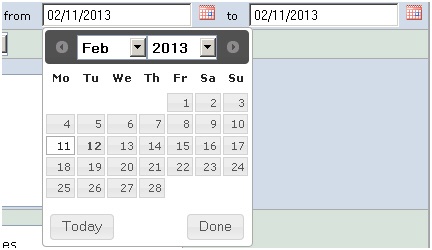

  1. If the User defined period is selected, enter the date of start and end periods for which the report is to be created in the from and to fields using the Calendar tool (2). Click the button next to the corresponding field to use the Calendar tool.
  2. If the User defined 2 period is selected, enter additionally the time of start and end periods for which the report is to be created using the button.
  3. If another period type is selected, specifying the date of start and end periods is not needed.
2. In the Transport detection drop-down list select the Transport detection object or the Vehicle processor object, which data should be used in the report (3).
  Note
  Only one object can be selected in the Transport detection drop-down list. The content of the list depends on the Auto-Intellect configuration.
3. In the Lanes list set checkboxes next to those lanes data of which is to be included in the report (4).
  Note.
  In order to select all lanes in the list click the All link. To uncheck all checkboxes click the None link.
4. In the Vehicle groups list set checkboxes in those vehicle groups data of which is to be included in the report (5). The following vehicle groups are available:
  - Small vehicles (the group includes cars and motorcycles);
  - Medium vehicles (the group includes cargo vehicles less than 12 m);
  - Large vehicles (the group includes cargo vehicles more than 12 m and buses).
  Note
  In order to select all vehicle groups in the list click the All link. To uncheck all checkboxes click the None link.
5. In the Displayed data list set checkboxes next to those parameters which are to be included in the report (6).
  Note.
  In order to select all fields in the list click the All link. To uncheck all checkboxes click the None link.
Click Execute to create the report (7).

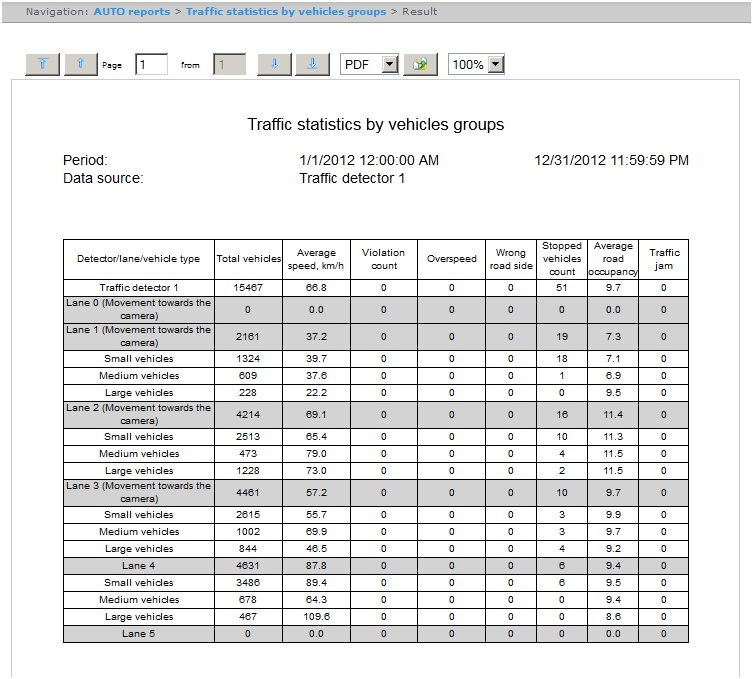

As a result the report in the selected form is displayed.
