The Traffic statistic by vehicles type report allows getting statistical data for each specified type of vehicles. Vehicle type is a set of vehicles the sizes of which are within the certain intervals.

Note

The Traffic statistic by vehicles type report is related to the Traffic detector and Vehicle processor modules (it is necessary to create the corresponding object in the Intellect software).

To create the Traffic statistic by vehicles type report, do the following:

  1. Select the Traffic statistic by vehicles type report type by one of the following ways:

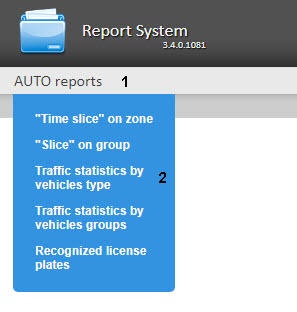

    1. Hover over the AUTO reports tab (1), and click the Traffic statistic by vehicles type link in the menu (2).

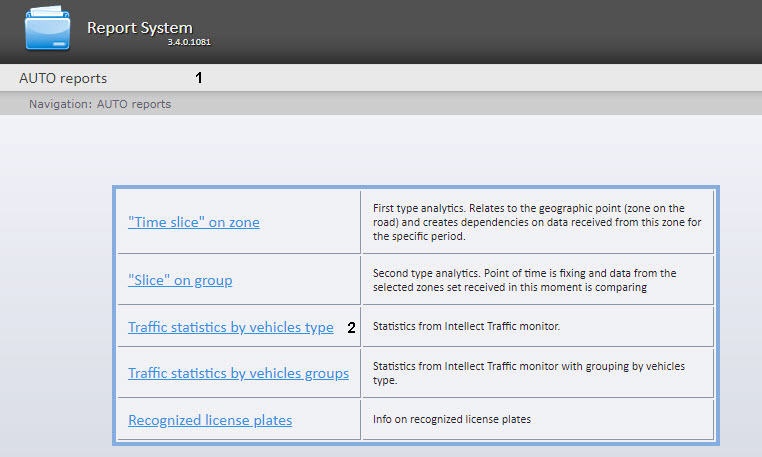

    2. Click the AUTO reports tab (1), wail till the table appears, then click the Traffic statistic by vehicles type link (2).
  2. As a result the dialog box for specifying the report parameters will be displayed.

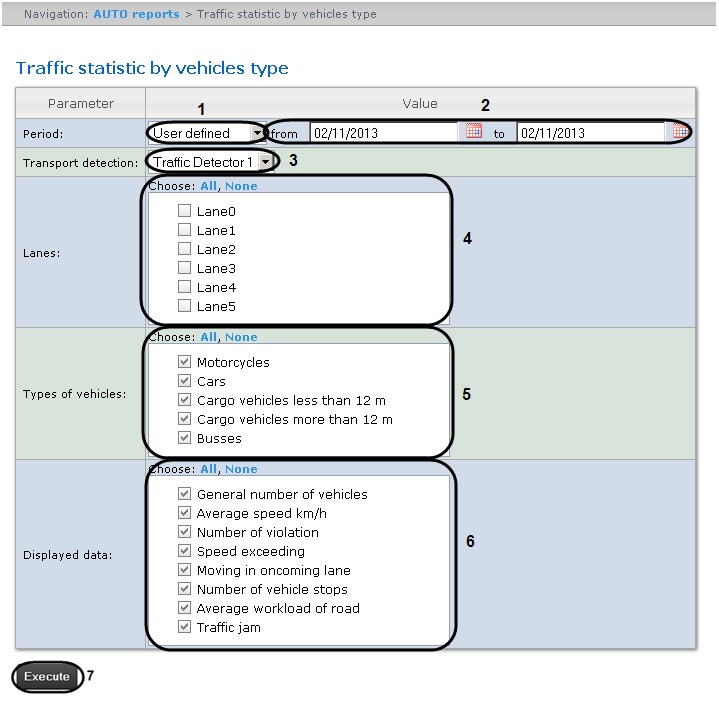

  3. Specify the report parameters in the following way:
    1. In the Period drop-down list select the time period for which the report is to be created (1).

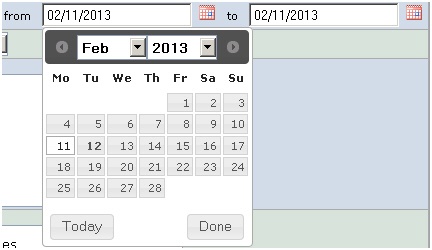

      1. If the User defined period is selected, enter the date of start and end periods for which the report is to be created in the from and to fields using the Calendar tool (2). Click the  button next to the corresponding field to use the Calendar tool.
      2. If the User defined 2 period is selected, enter additionally the time of start and end periods for which the report is to be created using the  button.
      3. If another period type is selected, specifying the date of start and end periods is not needed.

    2. In the Transport detection drop-down list select the Transport detection object or the Vehicle processor object, which data should be used in the report (3).

      Note

      Only one object can be selected in the Transport detection drop-down list. The content of the list depends on the Auto-Intellect configuration.

    3. In the Lanes list set checkboxes next to those lanes data of which is to be included in the report (4).

      Note.

      In order to select all lanes in the list click the All link. To uncheck all checkboxes click the None link.

    4. In the Types of vehicles list set checkboxes next to those vehicle types data of which is to be included in the report (5). The following types of vehicles can be selected:

      • Motorcycles;

      • Cars;

      • Cargo vehicles more than 12 m;

      • Cargo vehicles less than 12 m;

      • Buses.

      Note

      In order to select all types of vehicles in the list click the All link. To uncheck all checkboxes click the None link.

    5. In the Displayed data list set checkboxes next to those parameters which are to be included in the report (6).

      Note

      In order to select all fields in the list click the All link. To uncheck all checkboxes click the None link.

  4. Click Execute to create the report (7).

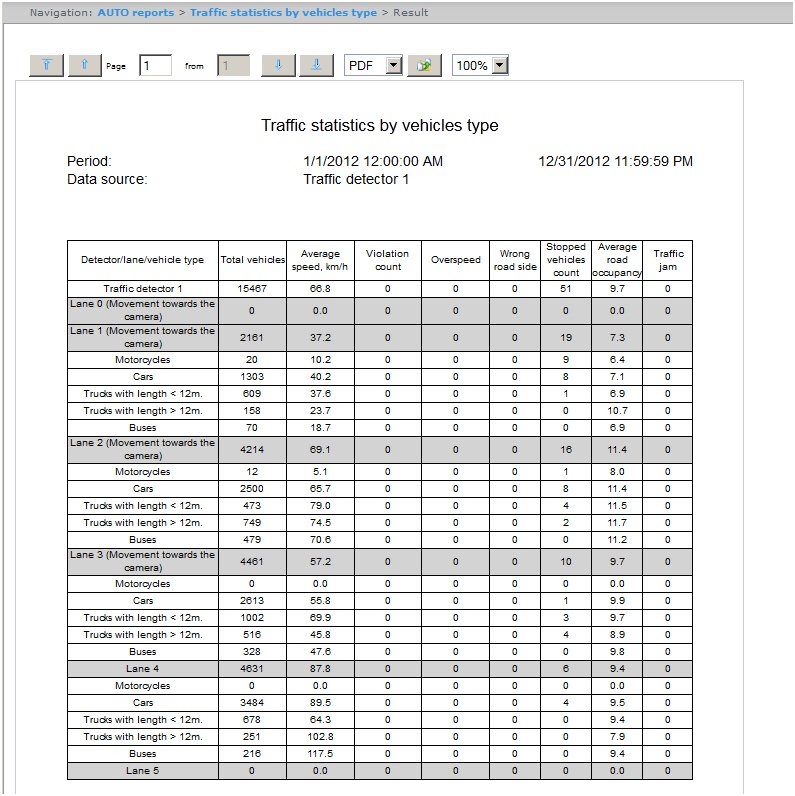

  5. As a result the report in the selected form is displayed.
