Important!

The Web.config file configuration must be performed on the computer where it is planned to work with the Sweethearting report.

After making any changes in the Web.config file, it is necessary to restart the Cassini Service utility.

You can filter the sweethearting events in order to build the Sweethearting report only by the events which occured while the receipt was open.

To filter the sweethearting events, do the following:

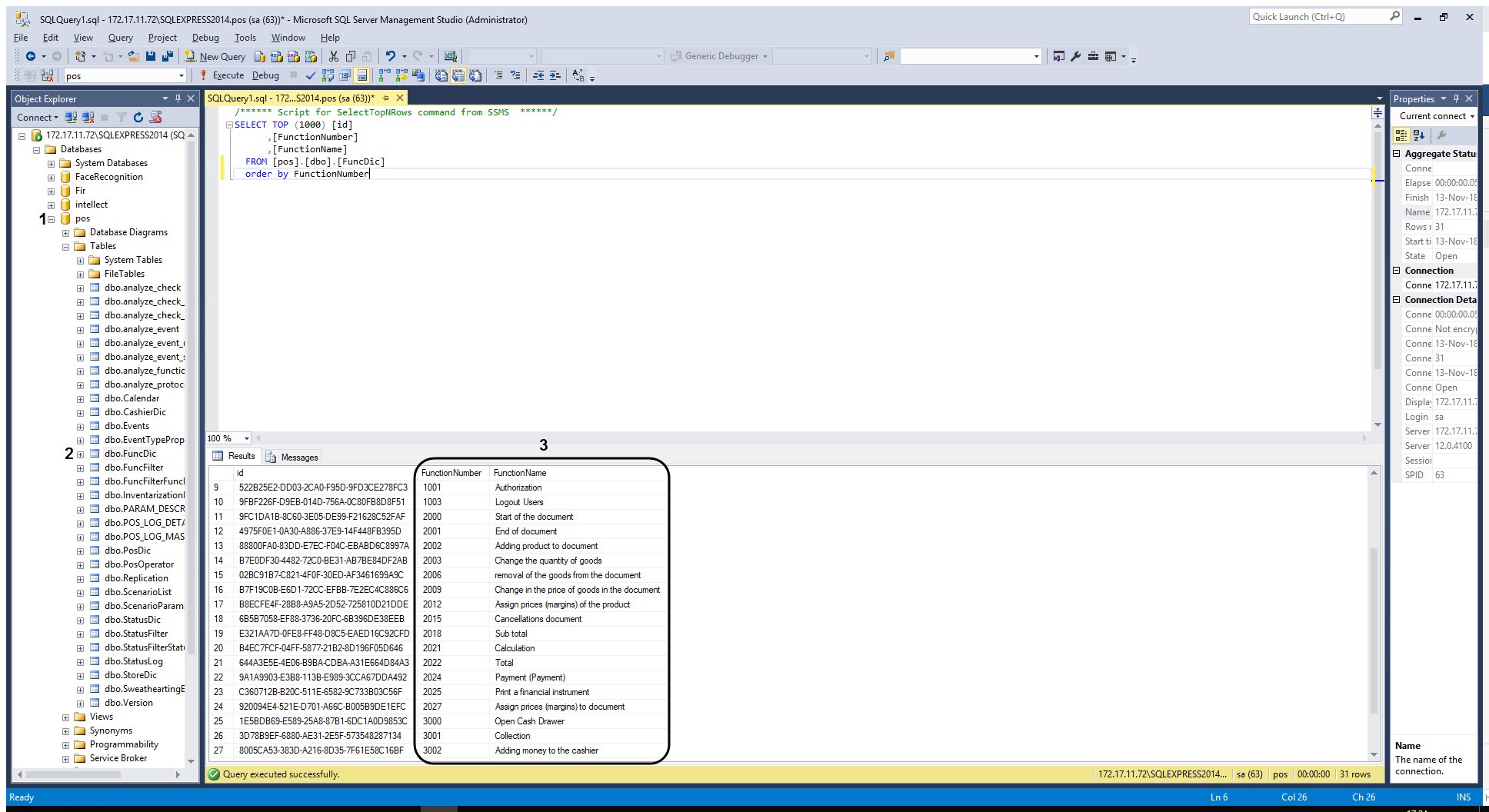

  1. Open the POS database in the SQL Server Management Studio software (1).

  2. Open the dbo.FuncDic table (2).

  3. Copy to the clipboard or memorize the function numbers in the FunctionNumber column (3) which will indicate the beginning and the end of the receipt.

    Note

    For example, the Document start function with the corresponding function number 2000 can be used as the receipt beginning, and the Result function with the corresponding function number 2022 can be used as the receipt end.

  4. Go to the <Intellect installation directory>\Modules\Wt2.
  5. Open the Web.config file for editing.
  6. For the SweatheartingBeginReceiptPosFunctionNumber key (1) specify the value corresponding to the function number used as the receipt beginning (3).
  7. For the SweatheartingEndReceiptPosFunctionNumber key (2) specify the value corresponding to the function number used as the receipt end (3).
  8. To enable filtering, specify the 1 value for the SweatheartingFilterByReceiptIntervals key (3). The default key value is 0 (filtering is disabled).

  9. Save the changes in the Web.config file.

    Note

    As a result, only the events which occured while the receipt was open will be displayed in the Sweethearting report. If the sweethearting event occured when the receipt was closed, such event will not be displayed in the report.

    Note

    The receipts which do not have their beginning and end specified in the Web.config file will be considered incorrect and will not be processed. Meanwhile, the receipt with several beginnings and ends specified will be processed.
