Viewing data from the POS terminal and the video of event

In order to view data from the POS terminal and video of event, do the following:

Display a detailed report (see Viewing a detailed report).

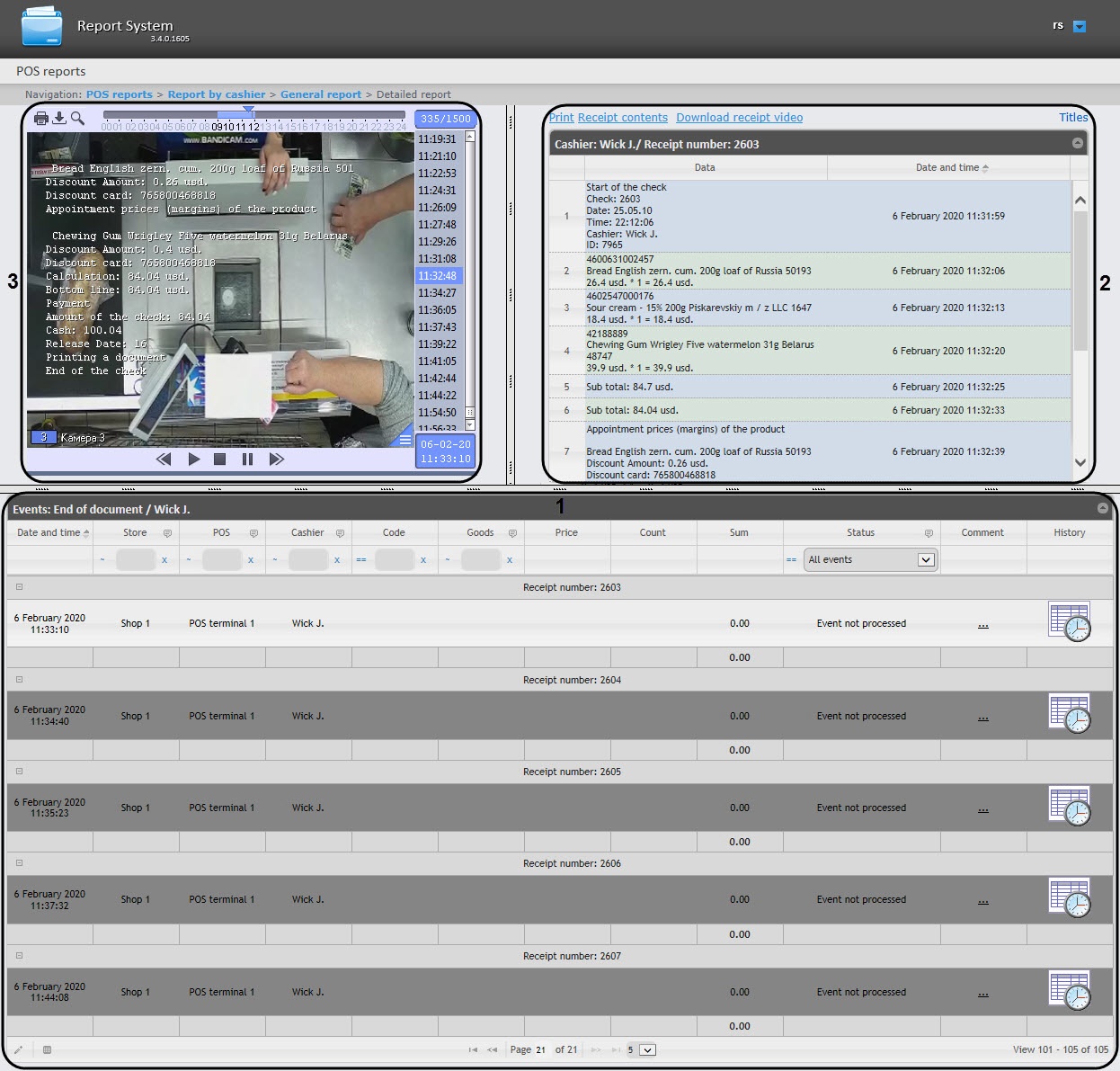

Left-click the line with the required event (1).
As a result, the following will be displayed:
1. The data from the POS terminal by event (2).
  Note
  For details on working with data from the POS terminal, see Operations with data from POS terminal.
2. Video of the event (3). The window for viewing the video by event is a standard Intellect video surveillance window, opened in the archive mode. In this window, you can view the archive not only for the current, but also for other events.
  Note
  - For details on working with the surveillance window in the archive mode, as well as exporting video images, see Video surveillance monitor operation. By default, the video images are exported to the <C:\Users\<user name>\Documents\Export> folder.
  - The video may not be displayed (it depends on whether the requirements for Web server and/or Client implementation are met — see Requirements for Intellect Web Report System implementation).

Note

You can change the order of displaying data from the POS terminal, video from the POS terminal and the list of events by selecting the appropriate layout (see Selecting layouts in POS reports).
