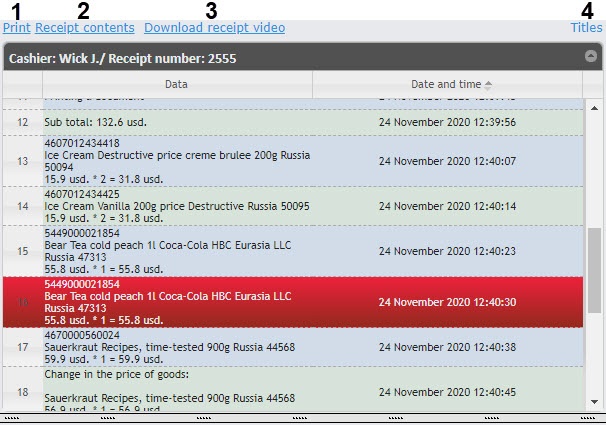

To work with data from the POS terminal by event, the following operations are possible:

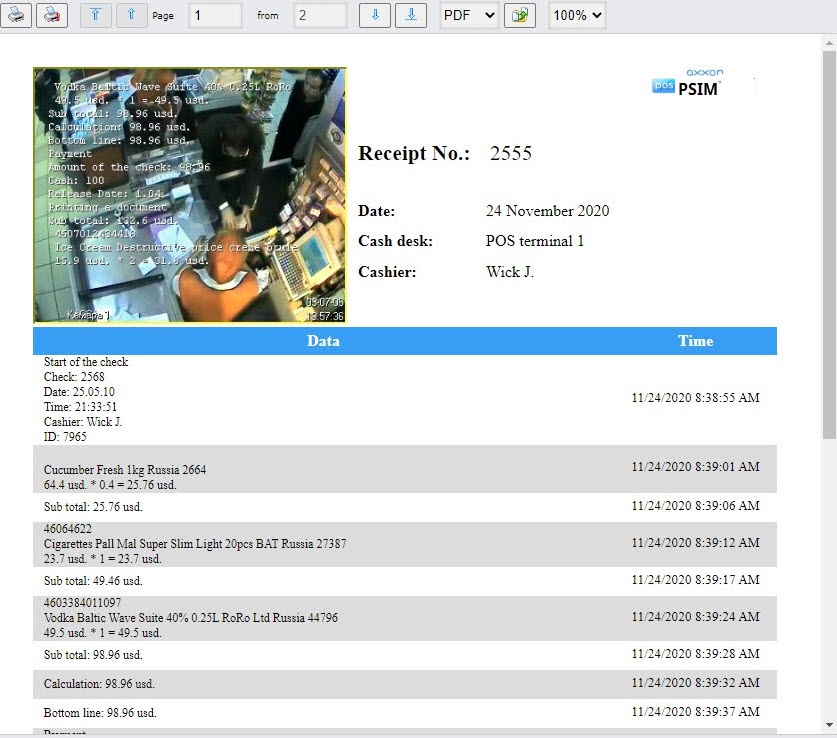

  • Print (1) − opens a window for printing a receipt with all the data from the POS terminal, including the image from a video camera.

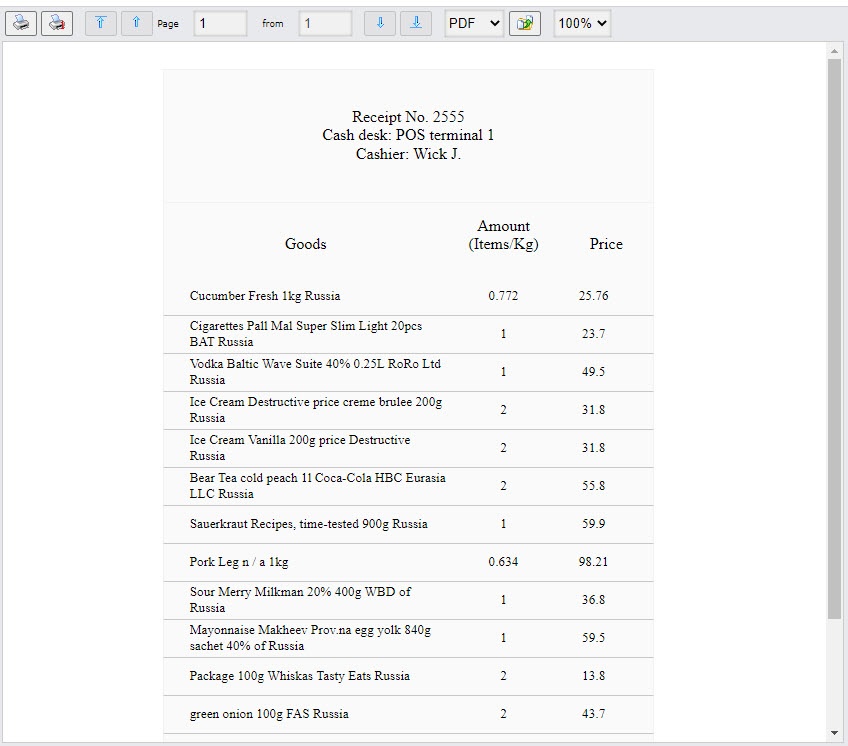

  • Receipt contents (2) − opens a window for printing only the list of items in the receipt.

  • Download receipt video (3) − saves a segment of a video with a receipt from the archive to a file. The video file has the following naming: id<receipt>_<cashier>_<POS terminal id>_<receipt beginning time>_<receipt ending time>.avi.

    Note

    The video file is exported to the <C:\Users\<user name>\Documents\Export> folder.

  • Titles (4) − enables or disables displaying captions on the video of the receipt when it is saved using the Download receipt video link.
