Attention!

In order to generate the Report by number of open POS terminals, the POS terminal and the Shop objects should be set up and configured in POS PSIM (see The POS terminal object setup and Setting up the Shop system object).

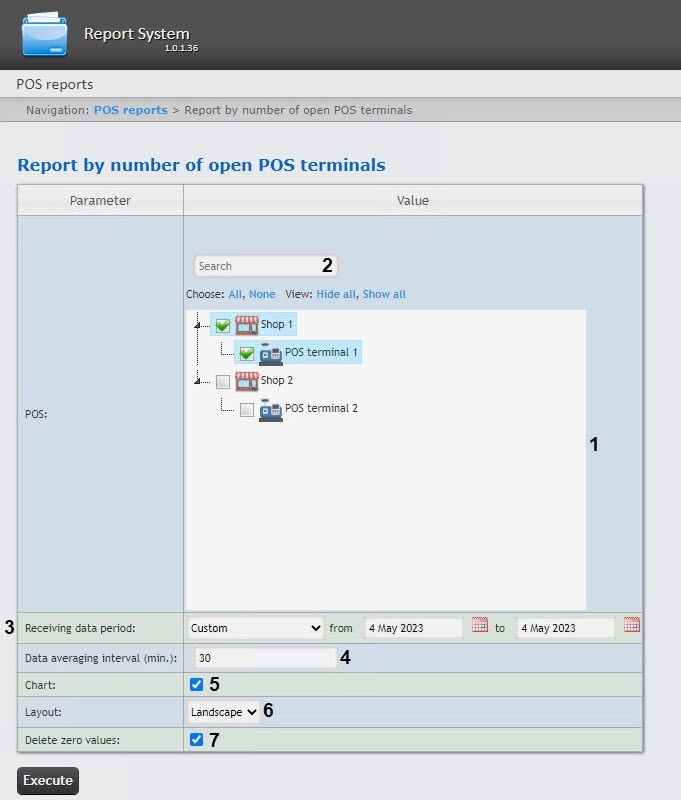

In order to display the Report by number of open POS terminals, do the following:

  1. Select the Report by number of open POS terminals (see Selecting a type of general POS report).

  2. Select the POS terminals (cash desks) by which it is necessary to display a report by setting the corresponding checkboxes in the list (1).

  3. To use the search when selecting the POS terminals, in the search field (2) start entering the POS terminal name. The search works starting from the first character. The results will be highlighted in a different color. To select all POS terminals of a shop, set a checkbox next to this shop. Click All to select all found/available POS terminals. Click None to deselect. Click Show all to expand the POS terminals structure. Click Hide all to hide the POS terminals structure.

    Attention!

    • This field is mandatory: the report will not be generated if no value is selected. If you try to generate a report, a warning message will alert you that you should select at least one value from the list.
    • The POS terminals that are not assigned to the shop are not available in the list.
  4. Specify the period in the following way:
    1. From the Receiving data period drop-down list, select the time period for which the report should be created (3).
    2. If the Custom period is selected, enter the date of start and end periods for which the report should be created in the from and to fields using the Calendar tool. Click the  button near the corresponding field to use the Calendar tool.
    3. Other options are also available:
  5. In the field Data averaging interval (min.), specify the data averaging interval in minutes (4).
  6. Set the Chart checkbox to display the report as a chart (5).
  7. In the Layout drop-down list, select the report orientation (Landscape or Portrait) (6).
  8. Set the Delete zero values checkbox in order not to display the open POS terminals in the report if their number equals zero (7).
  9. Click the Execute button to start the report generation.

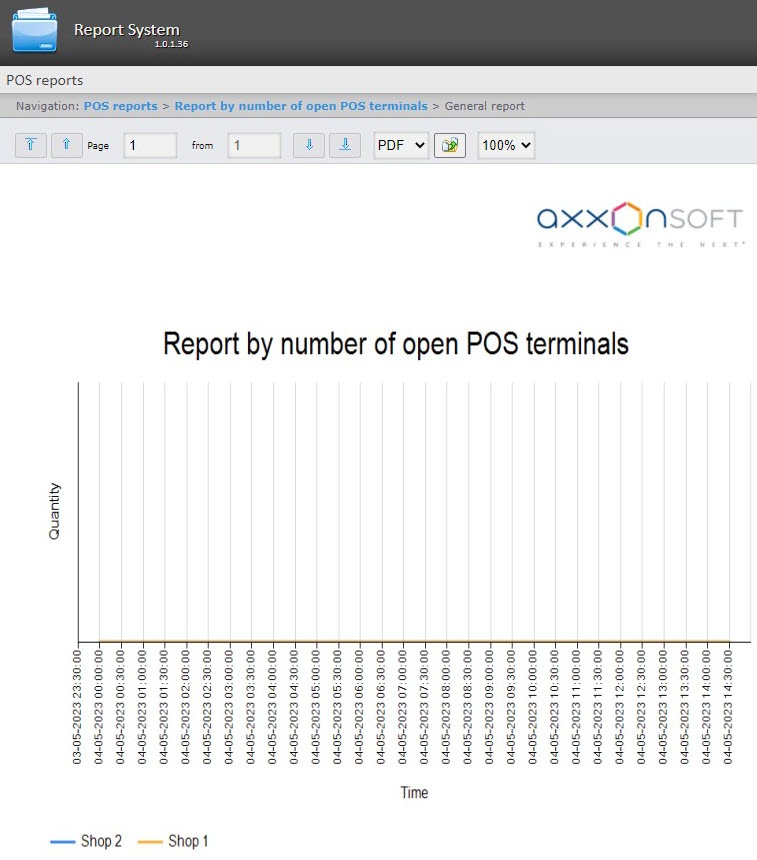

As a result, a summary table or a chart will be displayed containing the number of open POS terminals according to the specified parameters. If the report is displayed as a chart, then the number of open POS terminals will be displayed along the vertical line, and the time corresponding to the number of open POS terminals will be displayed along the horizontal line.

You can export the generated report (see Exporting of reports).
