To select the columns displayed in the detailed POS report, do the following:

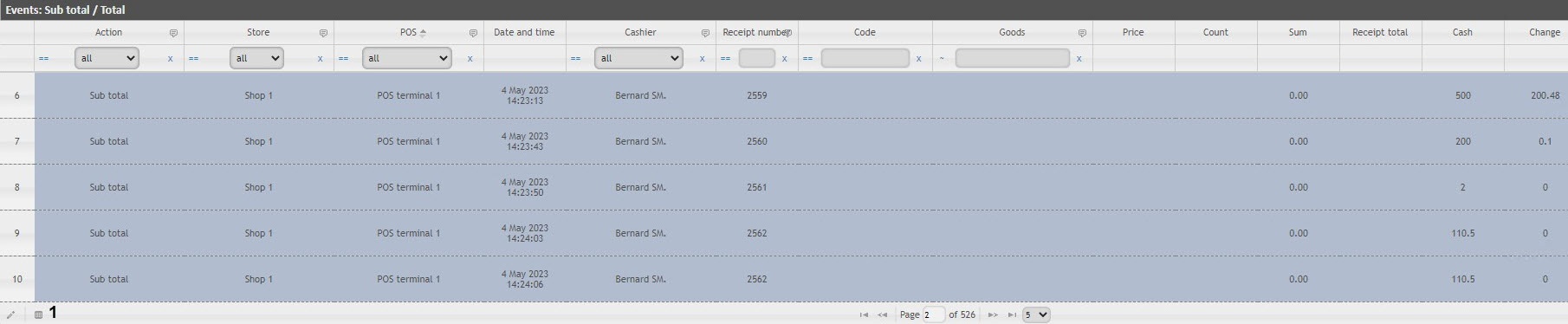

  1. Display a detailed report (see Viewing a detailed report).

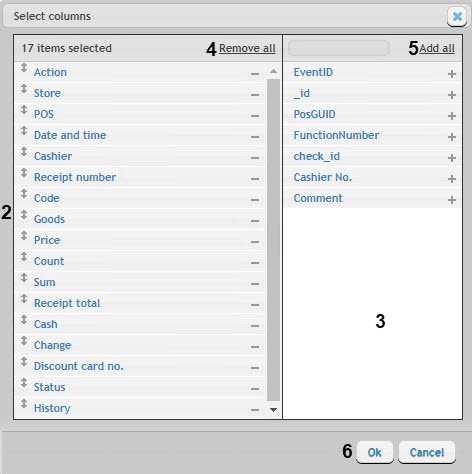

  2. Click the button (1) in the lower left part of the event list. As a result, the Select columns window will open.
  3. The active (displayed) columns are displayed in the (2) field.
    • To remove a column, click on the icon next to the name of the corresponding column in the field (2).
    • To remove all columns, click Remove all (4).

    • To change the order of the columns, in the field (2) drag the column name up and down to the required position.

  4. The inactive (not displayed) columns are displayed in the (3) field.

    • To add a column, click on the  icon next to the name of the corresponding column in the field (3).

    • To add all columns, click Add all (4).

  5. To save changes, click Ok (6).

Selecting the columns to be displayed in the detailed reports is completed.
