Installation of Additional workplace software is performed in the following sequence:

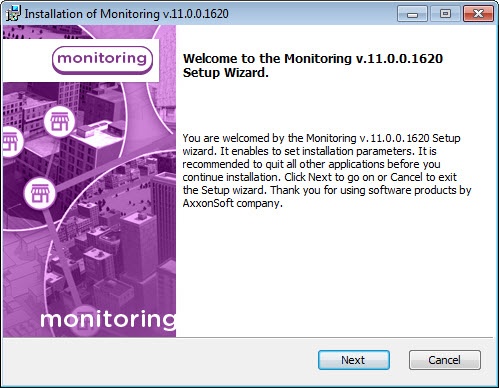

  1. From the installation kit, start the executable file setup.exe. A dialog box appears, informing of the beginning of installation. A prompt to start installation then appears. Click the Next button.

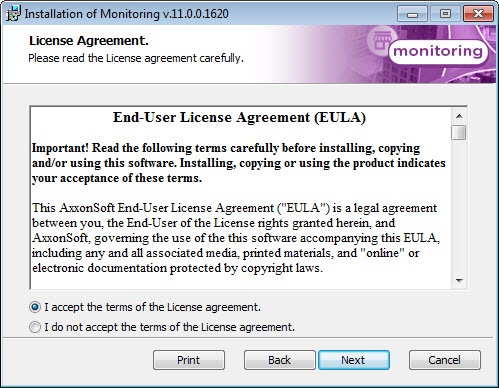

  2. The License Agreement window presents the terms of the end user license agreement. Select I accept the terms of the License Agreement. Click the Next button.

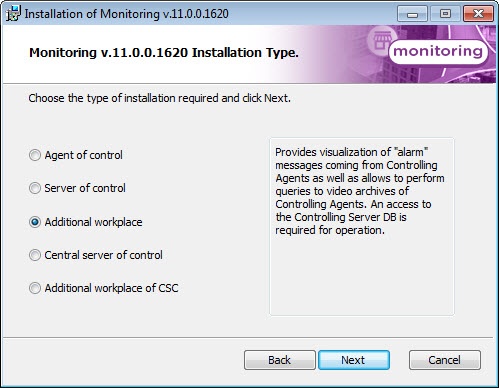

  3. On the next screen, select the Additional workplace installation type. Click Next.

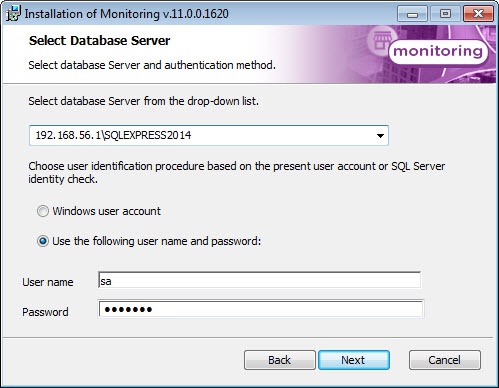

  4. A dialog box to configure database connection will be displayed. Select the database server name and set up the connection parameters.
    Click Next.

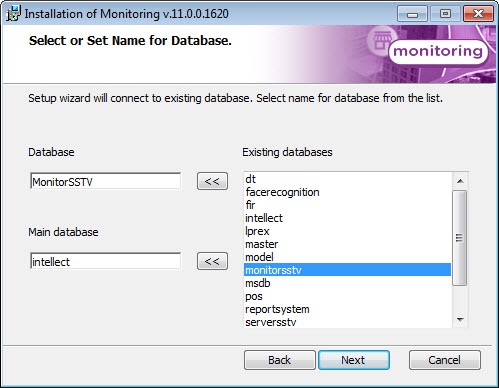

  5. In the Database field specify the name of existing database or select it in the list of databases, which are created in the server, and click <<.
    Click Next.

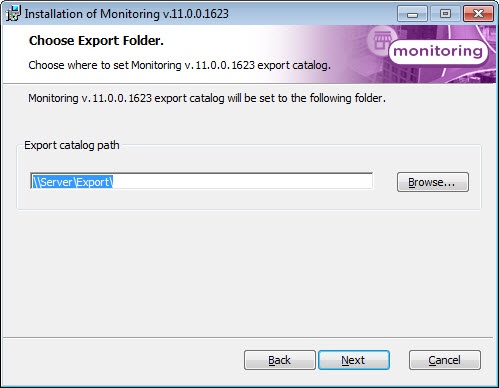

  6. Specify the export catalog path. This catalog will contain video data received from Agent of Control.
    Click Next.

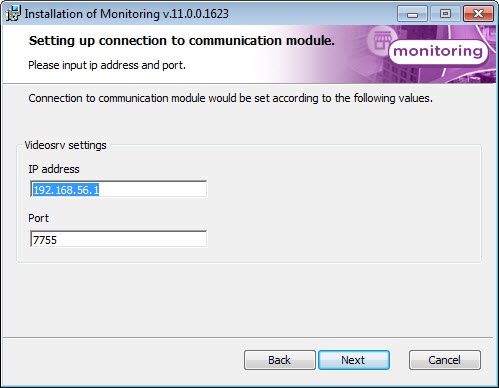

  7. Specify IP-address and port for connection to Server of Control communication module videosrv.
    Click Next.

    Note.

    It is strongly recommended to change default Export catalog path and IP address on steps 6-7. Otherwise, after the installation is completed, it will be necessary to configure Additional workplace (see Configuring Additional workplace and Additional workplace of CSC).

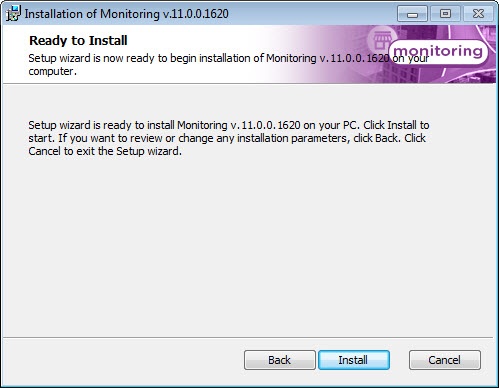

  8. Click Install on the next dialog box.

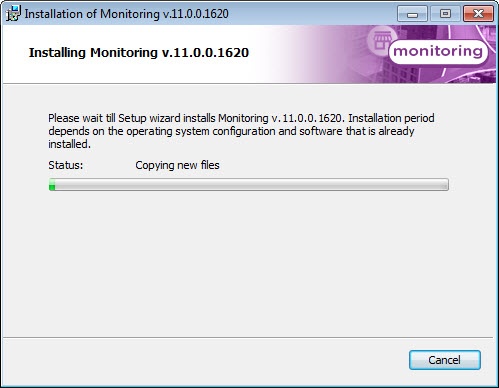

  9. The installation process is launched.

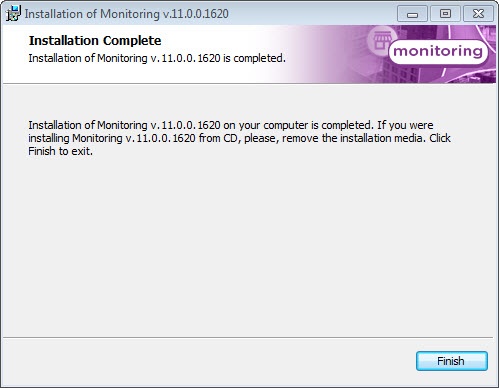

  10. When installation is complete, a wizard page appears with a message about successful installation. Click the Finish button.

Installation of Additional workplace software is complete.
