Hardware failures reports

To start creating a report, click System failures .

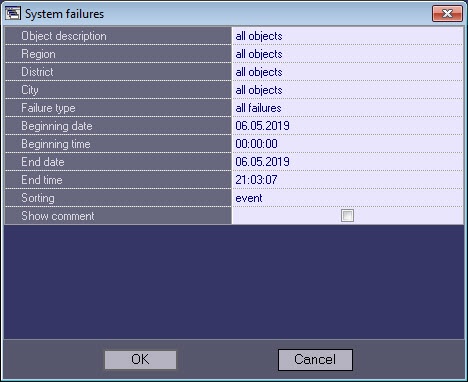

A modal window opens. In this window, you can set the parameters needed to create the report.

You can set the following report parameters:

1. Object description. You can use this field to choose between two report modes:
   1. Report on all the system objects.
   2. Report on one system object.

2. Region, district and city in which the objects are located. This information is configured on the Control panel - see Editing regulatory and reference information. If a specific object is selected (see step 1), then these fields are hidden in the report settings window.

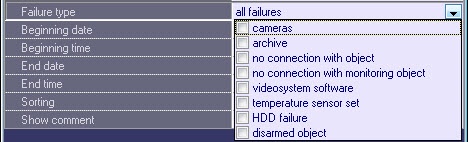

3. Failure type You can use this field to specify the failure type for which to create the report. You can also create a report on all the failures within a certain time period.

4. Beginning date, End date, Beginning time, and End time. This setting is used for specifying the time range of the alarms by which the report will be generated.
5. Sorting. You can use two sorting modes when creating a report:
   1. Sort by events (Vibration sensor signal, Lock sensor signal, etc.).
   2. Sort by event start time.

6. Show comment. Set this checkbox if it is necessary to display failure comments in the report (see Processing alarms).
7. After you configure all the parameters, click OK .

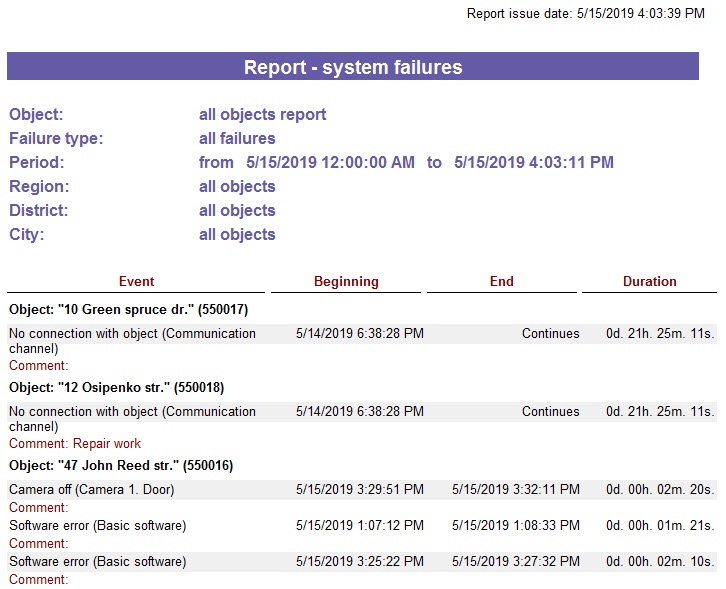

   You can see the report in a separate window.


Each report window contains a tool bar:

Here are some details on the Save report and Open report buttons. For example, if there is no printer at the place where the Monitoring Reports component is installed or if you want to save your report in electronic form to view it later, you can save the report as a FRP, XLS, XML, RTF, or HTML file. Then you can open the report on another computer.
