A Server of Control can simultaneously interface with objects over both the TCP/IP and RS232 protocols.

To configure a connection between Server of Control and Agent of Control/Archive:

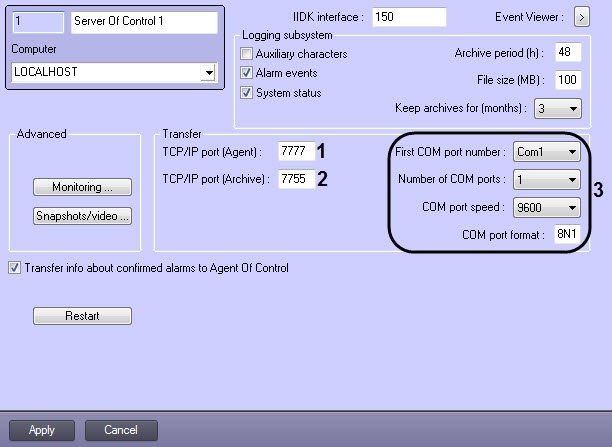

  1. Go to the configuration panel for the Server of Control object.
  2. In the TCP/IP port (Agent) field, enter the port number for TCP/IP communication with remote objects (1).

  3. In the TCP/IP port (Archive) field, enter the port number for TCP/IP communication with the Search in archive module (2).

    Note

    The default value of the TCP/IP port (Archive) is 7755. After you change the port number, it is necessary to also change the IPPort registry key value to the new port number (for details, see Registry keys reference guide, for more information about working with the registry, see Working with Windows OS registry).

  4. For the RS232 protocol, indicate the following parameters: First COM port number, Number of COM ports, COM port speed, and COM port format (3).
  5. Click the Apply button.

Connection configuration is complete.
