Important!

Before creating the Monitoring object, create and configure the Server of Control object (see Creating necessary Server of Control objects).

 To configure the Monitoring interface object:

  1. In the object tree, select the Monitoring object. On the right side of the System settings dialog box, the configuration panel for the relevant object is displayed.
  2. Set the check boxes next to the alarm groups that should be visualized (1). The Extra 1 and Extra 2 groups of alarms can be renamed.

  3. If it is necessary to display the Owners panel component on the screen, select the Owners panel check box and specify the component coordinates the on-screen coordinates of the component (2). You can also set the scaling of objects from 100% to 500%.

    Note

    If the scaling parameter exceeds 110%, then the high resolution icons will be displayed on the object, and the Courier New font will be used for the text in the object title, otherwise - MS Sans Serif.

  4. If it is necessary to display the Control panel component on the screen, select the Control panel check box and indicate the on-screen coordinates of the component (3). You can also set the scaling of objects from 100% to 500%.

    Note

    If the scaling parameter exceeds 110%, then the high resolution icons will be displayed on the object, and the Courier New font will be used for the text in the object title, otherwise - MS Sans Serif.

  5. If it is necessary to display the Log panel component on the screen, select the Log panel check box and indicate the on-screen coordinates of the component (4).
  6. To require that operators leave comments when accepting an alarm (to describe the alarm and/or their actions), select the Non-empty Comment field check box (5). These comments can later be reviewed in the event log, which also indicates the operator that accepted the alarm.
  7. By default, objects can be filtered by Alarm and Failure events as well as by Connected and Disconnected states. Uncheck the Use filter by events box to disable this feature (6). As a result, the corresponding drop-down list becomes disabled.
  8. If when live video is attempted to be viewed, it is necessary to display a warning that it can create the critical load per channel, set the Warning when watching live video checkbox (7).

  9. If Agents of Control and Additional workplaces are in different subnets and the Monitoring components are not in a distributed system configuration in Intellect object tree and Data gateway is in use for transmission of live video to Additional workplaces, set the Viewing live video through gateway checkbox (8).

    Note

    For the details about the Data gateway, see Creating and configuring Data gateway.

  10. To add the "All cameras of Partition of Control" item to the object's "Video image playback" context menu which enables viewing video from all cameras of the selected Partition of Control, set the Viewing live video from all cameras (add.) checkbox (9).

  11. In the Video stream speed field, enter the number of frames per second of the video image when viewing live or archive video (10). This parameter is used to limit the data flow between the Server Of Control and the Agent Of Control (for example, in case the communication channel has low bandwidth).

    Notes

    • Note 1. The Video stream speed setting works for the archive video only with CamMonitor.ocx 4.11.0.1766 or later versions.
    • Note 2. If the archive is recorded with the h264 codec and the video stream speed is set to more than 0 frames per second, then the archive video will be played back only by reference frames.
    • Note 3. If the value of the video stream speed is 0, then the live and archive video will be played back without scaling.
  12. Select the required compression rate for the live video in the Compression drop-down list (11).

  13. If specific owners are to be available for specific users on the Owner Panel, then set the filter by owners:

    1. Click the Filter… button (12).

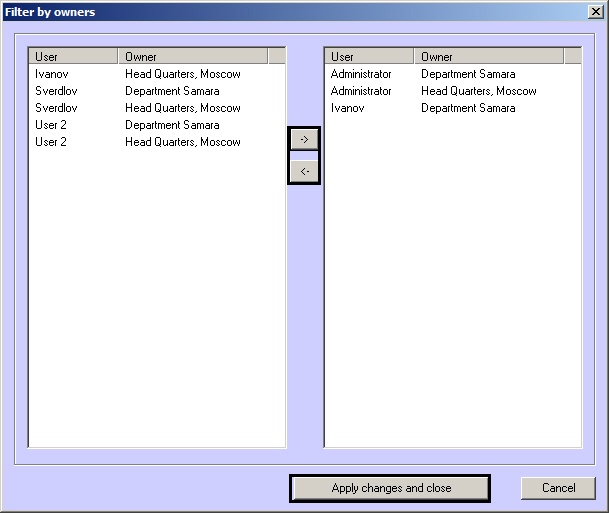

    2. The Filter by owners window appears. The list of available user-owner pairs is on the left, the list of selected ones is on the right.

      Note.

      The list of owners is set on the Control Panel – see Regulatory and reference information section of Operator's Guide.

      Users and their rights are configured in the Users tab of the System settings dialog box – get information on how to do it in the Intellect Software Package. Administrator’s Guide. The latest version of this document can be found in AxxonSoft documentation repository.

    3. Move the pairs between the lists using the <- and ->buttons.
    4. When the list of user-owner pairs is formed, click the Apply changes and close button.
  14. Selected pairs of users and owners are displayed in the table (13).
  15. Click Apply (14).

Configuration of the Monitoring interface object is now complete.

When a screen for which the Monitoring object has been created is selected in Intellect, the Monitoring interface window is displayed.
