Documentation for Monitoring 14.0. Documentation for other versions of Monitoring is available too.

Previous page Additional workplace installation  Additional workplace of CSC installation Next page

The Monitoring software is installed as a part of the Intellect software. Information about compatibility of the Intellect software versions and Monitoring is presented in the Obsolete. General information about product releases and versions compatibility section.

To install Monitoring software in the Central Server of Control configuration, do the following:

  1. In the root directory of the distribution package, run the setup.exe executable file.

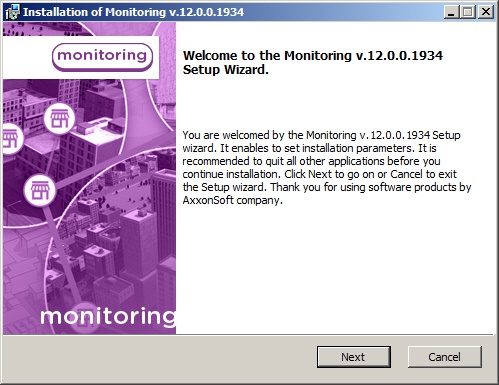

  2. To continue the installation process, click Next.

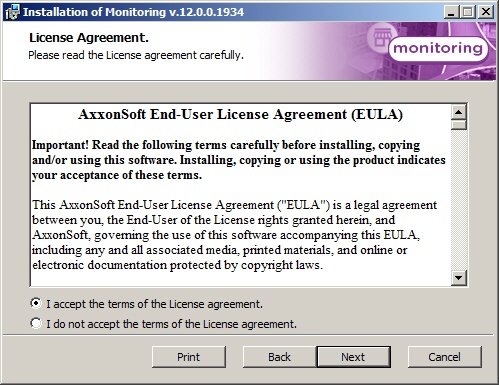

  3. Read the terms of the license agreement carefully. Then set the radio button to I accept the terms of the License agreement and click Next.

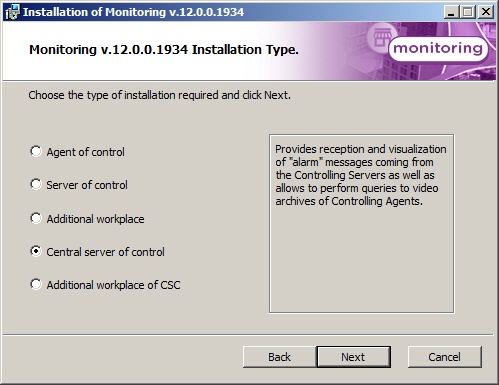

  4. Set the Central Server of Control installation type and click Next.

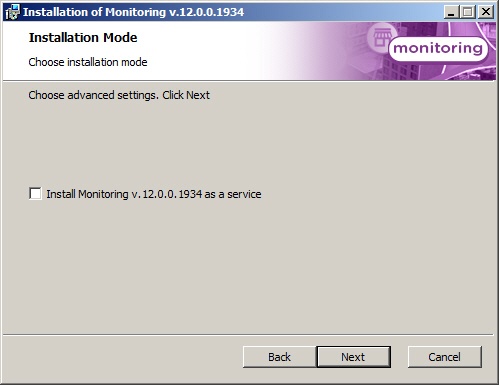

  5. If Intellect software is installed as a service, and it is necessary that Monitoring is also installed as a service, then set the Install Monitoring as a service checkbox and click Next (for details, see General information about Monitoring as a Service).

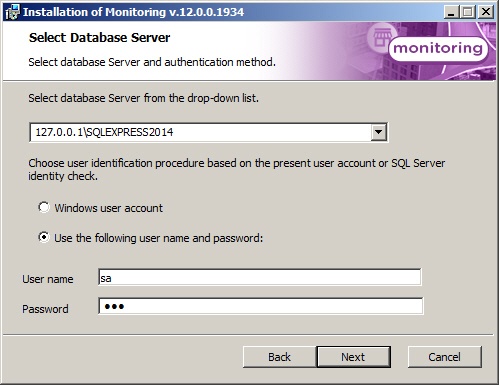

  6. Select the database MS SQL Server and specify the authorization parameters for connection. For details, see Installation of INTELLECT™ software as a Server/Remote administrator workplace. To continue the installation process, click Next.

    Note

    In the Select database Server from the drop-down list field specify the 127.0.0.1 value instead of computer name or "(local)" value. Otherwise Central Server of Control will lose connection with its local database when the network cable is disconnected.

  7. In the Database field specify the name of the database or select it on the right part of the window in the list of databases, which are created in the server, and click <<. Then click Next.

    Note

    By default, the name of the database is "ServerSSTV" and its files will be stored in the SQL Server folder.

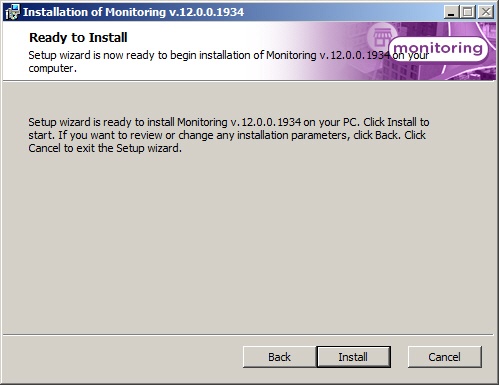

  8. Click Install to start the installation process.

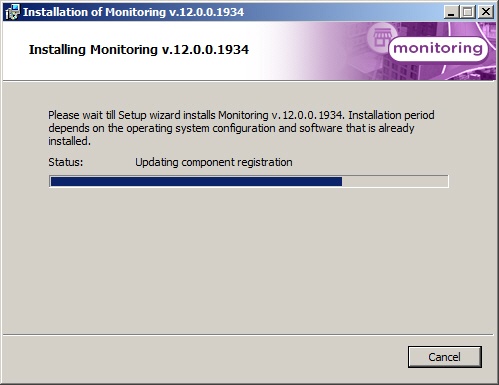

  9. As a result, the necessary components of the Monitoring software package will be copied to hard drive of your computer.

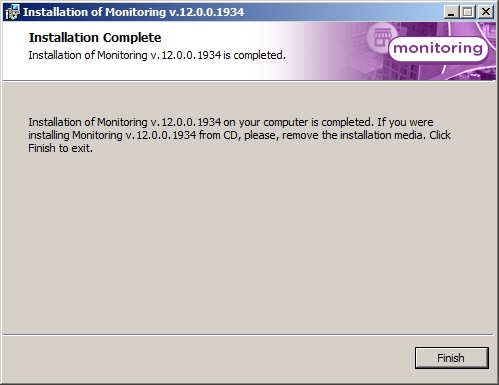

  10. After all software components are successfully copied on your hard drive, the message about the completion of the installation process will be displayed. Click Finish.

Installation of Central Server of Control software is complete.
