To start creating a report, click Alarms.

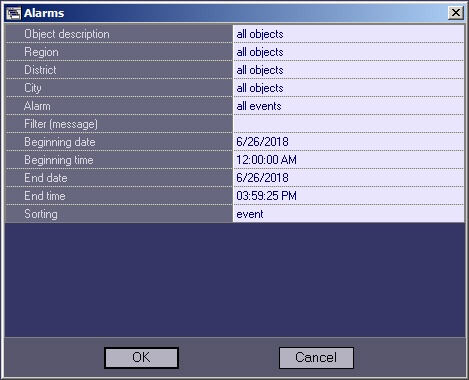

A modal window opens. In this window, you can set the parameters needed to create the report.

You can set the following report parameters:

  1. The time range of the report. Use the Beginning date, Beginning time, End date, and End time fields.
  2. Object description. You can use this field to choose between two report modes:
    1. Report on all the system objects.
    2. Report on one system object.

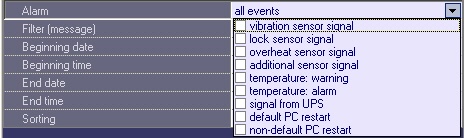

  3. Alarm. You can use this field to specify a certain alarm for creating the report. You can also create a report on all the alarms within a certain time period.
  4. Sorting. You can use two sorting modes when creating a report:
    1. Sort by events (Vibration sensor signal, Lock sensor signal, etc.).
    2. Sort by event start time.

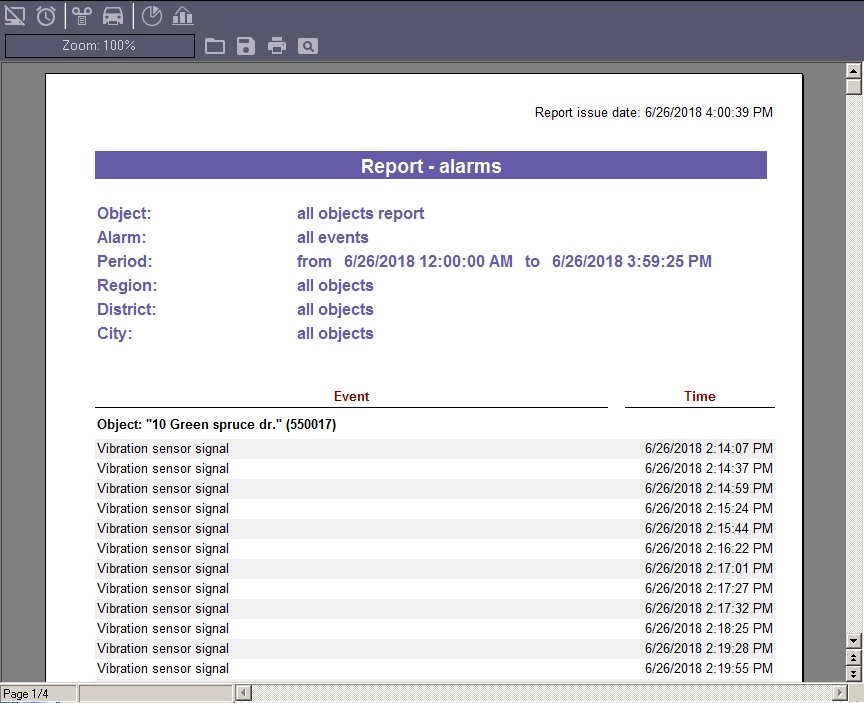

After you configure all the parameters, click OK. You can see the report in a separate window.
