title	Attention!

In order to generate a report by POS operator, the POS terminal object should be setup and configured in the Axxon POS PSIM (see The POS terminal object setup).
To configure the list of POS operators, see Creating the list of POS operators.

Select the Report by operator (see Selecting a type of general POS report).

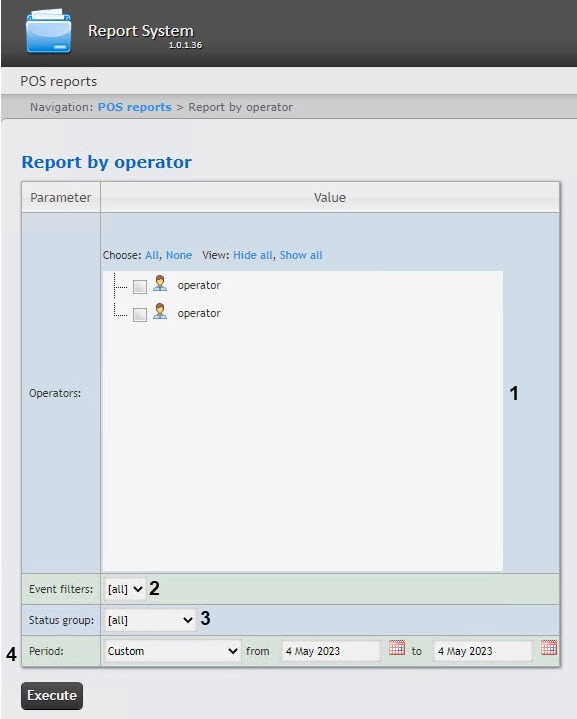

Select the POS operators by whom it is necessary to generate a report by setting the corresponding checkboxes in the Operators list (1). Click All to select all operators from the list. Click None to deselect. Click Show all to expand the operators structure. Click Hide all to hide the operators structure (2).
From the Event filters drop-down list (32), select an event filter that should be used to generate the report. If All is selected, then event filters are not considered and the report is created by all events.
From the Status group drop-down list (43), select the status group of those events that should be displayed in the report. If All is selected, the report will include all POS events regardless of their status.
From the Period drop-down list (54), select the time period for which the report should be created. If the Custom period is selected, enter the date of start and end periods for which the report should be created in the from and to fields using the Calendar tool. Click the button near the corresponding field to use the Calendar tool.
Click the Execute button.

...
