  1. Create the SALTO parent object on the basis of the Axacfa object on the Hardware tab of the System settings dialog window.

  2. In the Server IP address field, enter the IP address of the computer on which the SALTO "ProAccess Space Service" software is installed.

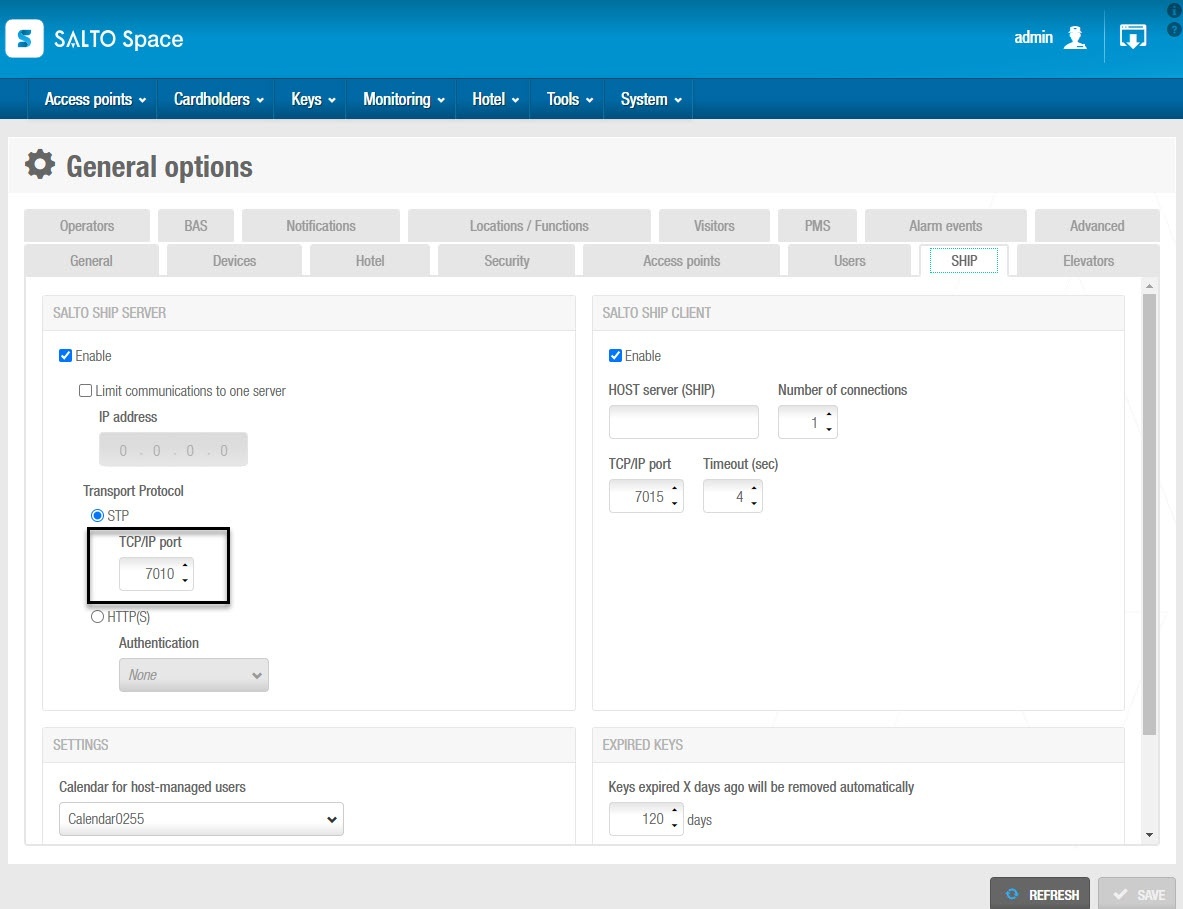

  3. In the Server SHIP port field, specify the port number of the SHIP client that is configured in the SALTO "ProAccess Space Service" software. You can see this number in the settings of the ProAccess Space Service web client here:

  4. Click the Apply button to save the settings.

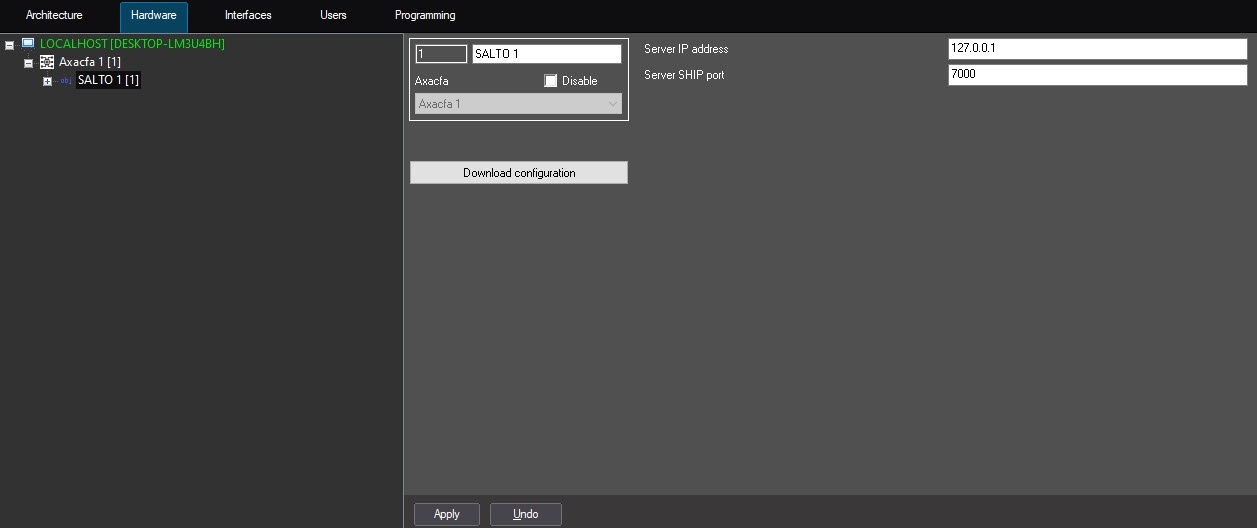

  5. To download the configuration and automatically build the hardware tree, click the Download configuration button. A hardware tree will be built:

The SALTO parent object is now configured.
