To work with the SALTO (AxACFA) integration module, you must install and configure the AxACFA feature. For more details, see Connecting and configuring the AxACFA feature.

To configure the SALTO parent object, do the following:

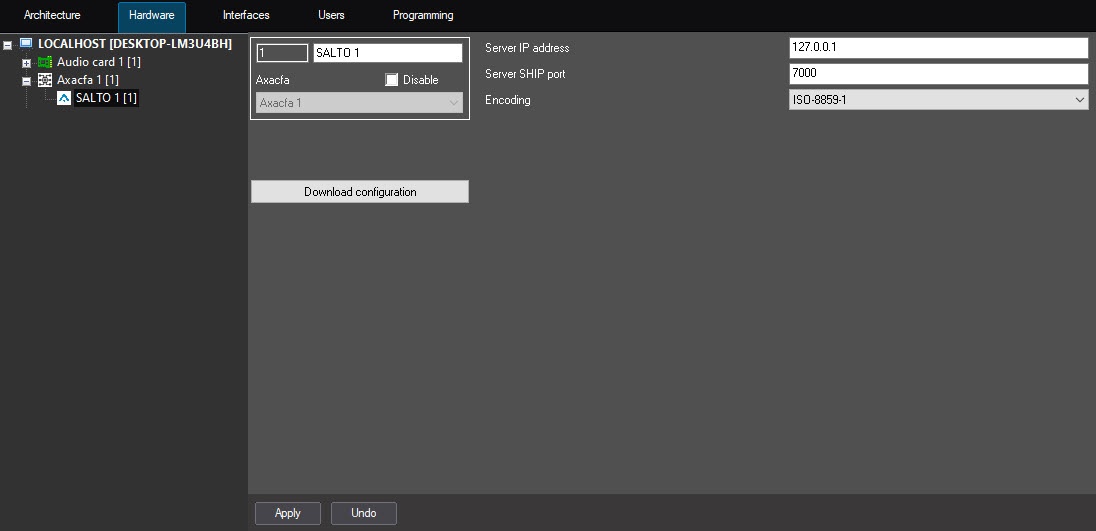

  1. Create the SALTO parent object on the basis of the Axacfa object on the Hardware tab of the System settings dialog window.

  2. In the Server IP address field, specify the IP address of the computer on which the SALTO "ProAccess Space Service" software is installed.

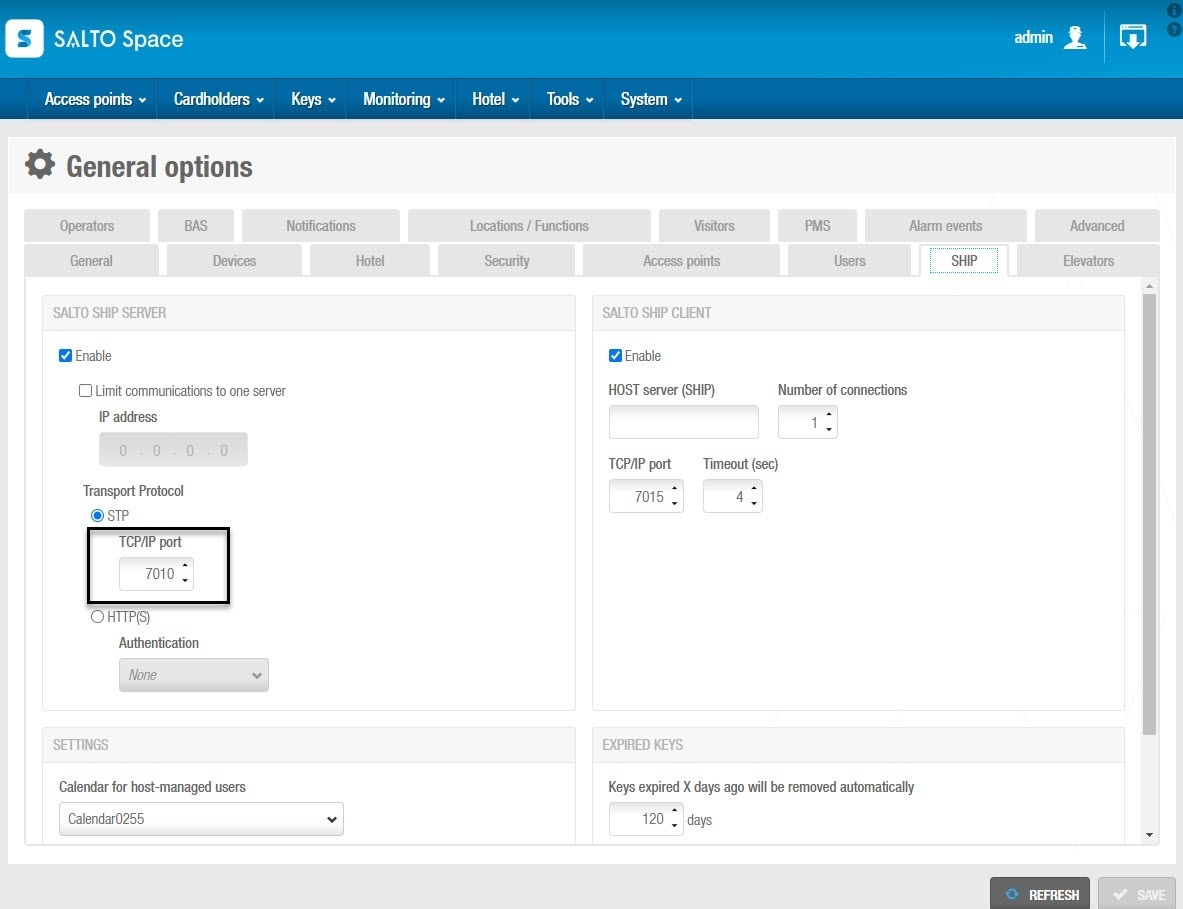

  3. In the Server SHIP port field, specify the port number of the SHIP client that is configured in the SALTO "ProAccess Space Service" software. You can see this number in the settings of the ProAccess Space Service web client here:

  4. In the Encoding list, the ISO-8859-1 value is selected by default and used to operate on the computer with the installed SALTO "ProAccess Space Service" software and to name objects. If necessary, you can change it to UTF-8. For more details, see the Salto manufacturer documentation.

  5. Click the Apply button to save the changes.

  6. To download the configuration and automatically build the hardware tree, click the Download configuration button.
    As a result, the hardware tree will be built:

Configuring the parent object is complete.
