In ACFA Intellect software package the connection to UniPos 4000/5000 FSA is carried out on the setting panel of the UniPos 4000/5000 FSA object. This object is created on the basis of the Computer object on the Hardware tab of the System settings dialog box.

To configure the connection to UniPos 4000/5000 do the following:

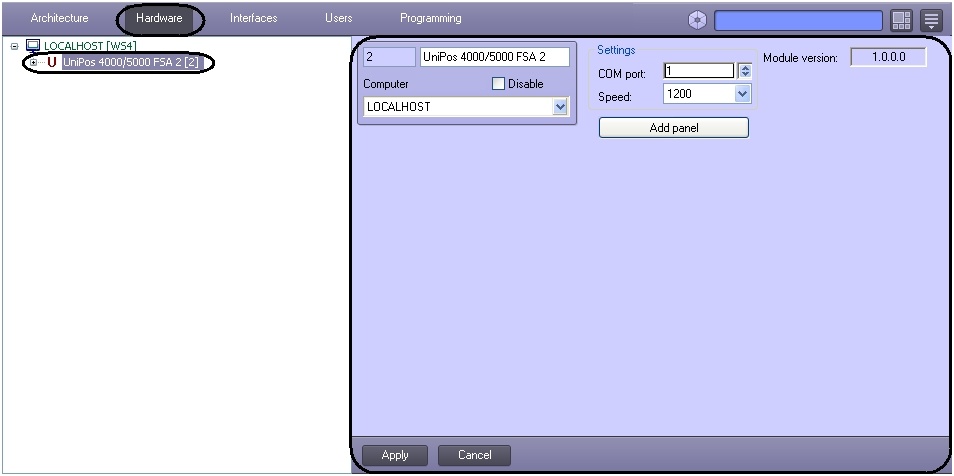

  1. Go to the setting panel of the UniPos 4000/5000 FSA object.

    Note.

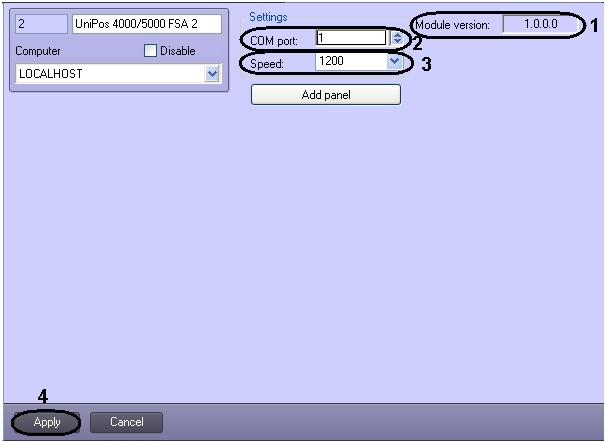

    Current version of the UniPos 4000/5000 FSA integration module is displayed in the Module version field (1).
  2. With the help of up-down buttons in the COM-port field set the number of COM port through which there will be the connection with ACFA Intellect Server ( 2).
  3. From the Speed dropdown list select the speed of data exchange through the COM port (3).
  4. To save changes click Apply (4).

Configuration of connection to UniPos 4000/5000 FSA is completed.
