The "Slice" on group report allows getting data about the vehicles average speed, the traffic range and density, and the lanes occupation in the selected point of time. The point of time is specified within the accuracy of a minute. The report data can be presented as a table and a chart.

Note

The "Slice" on group report is related to the Vehicle detector and Vehicle processor modules (it is necessary to create the corresponding object in the Intellect software).

To create a "Slice" on group report, do the following:

  1. Select the "Slice" on group report type by one of the following ways:

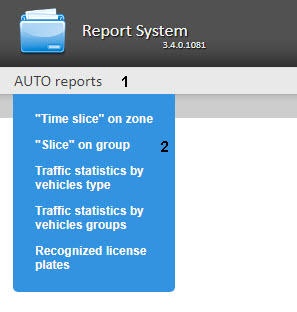

    1. Hover over the AUTO reports tab (1), and click the "Slice" on group link in the menu (2).

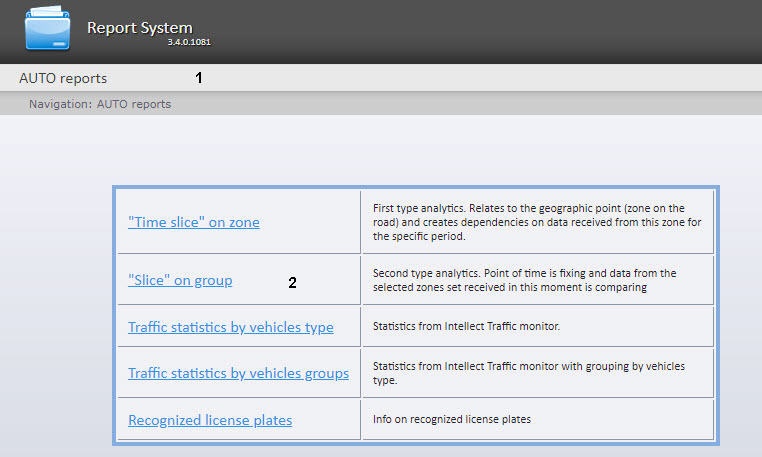

    2. Click the AUTO reports tab (1), wail till the table appears, then click the "Slice" on group link (2).
  2. As a result the dialog box for specifying the report parameters will be displayed.

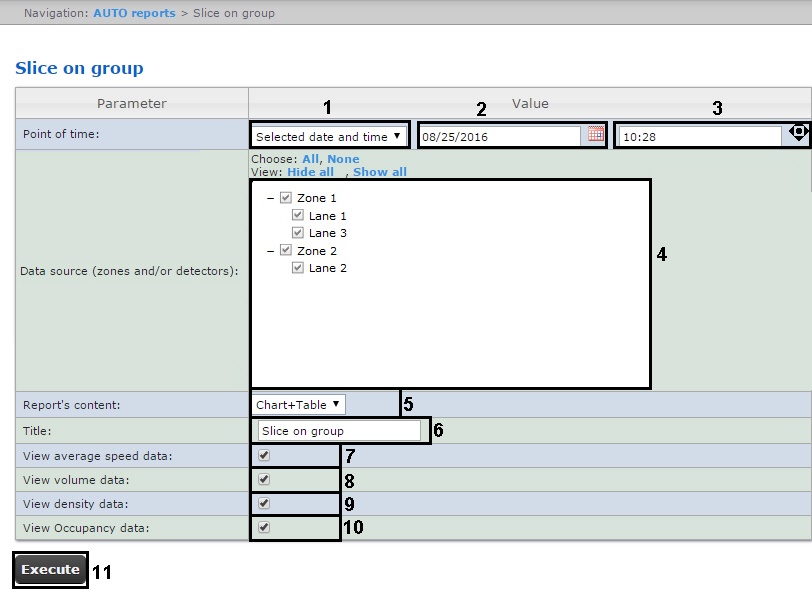

  3. Specify the report parameters in the following way:
    1. From the Point of time drop-down list select the mode of specifying the slice moment: select the Current date and time if the report is to be created on the current moment or Selected date and time if the report is to be created on the specified point of time (1).

    2. If the Selected date and time mode was selected, enter the date when the report is to be created using the Calendar tool in the (2) field and date of report in the (3) field. Click the  button near the corresponding field to use the Calendar tool.

      Note.

      Click the  button to set the current system date and time as the report time (3).

    3. Set the checkboxes next to those lanes and/or detectors by which the report is to be created (4).


      Note.

      Click the All link to select all lanes and detectors in the list. Click the None link to uncheck all checkboxes.

      The content of the field depends on the Auto-Intellect configuration.

    4. From the Report's content drop-down list select the way of report displaying (5).

    5. In the Title field enter the report name which is to be displayed (6).

    6. Set the View average speed data checkbox to include the data about average speed on selected lanes (7).

    7. Set the View volume data checkbox to include the data about vehicle numbers on lanes for the specified time period (8).

    8. Set the View density data checkbox to include the data about vehicle numbers per kilometer on the specified lanes (9).

    9. Set the View Occupancy data checkbox to include the data about percent of lanes occupancy (10).

  4. Click Execute to create the report (11).

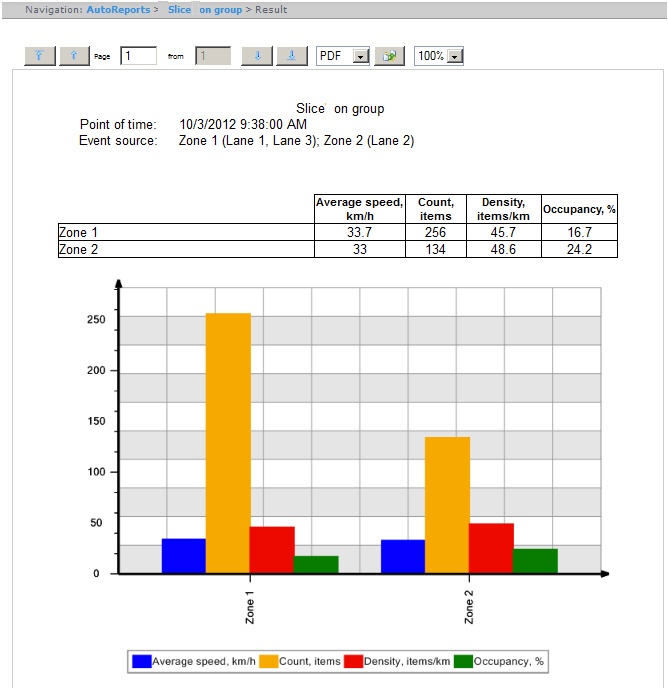

As a result the report in the selected form is displayed.
