Getting a traffic statistics by vehicles groups

In order to get a traffic statistics, do the following:

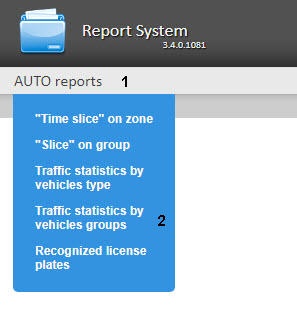

1. Select the Traffic statistics by vehicles groups type of Auto reports (see Selecting a type of Auto report section).
2. As a result the dialog box for specifying the report parameters will be displayed.

3. Specify parameters of Traffic statistics by vehicles groups in the following way:
   1. In the Period: drop-down list select the time period for which the report is to be created (1).
   2. If the User defined period is selected, enter the date of start and end periods for which the report is to be created in the from and to fields using the Calendar tool (2). Click the  button next to the corresponding field to use the Calendar tool.

   3. If the User defined 2 period is selected, enter additionally the time of start and end periods for which the report is to be created using the  button.
      If another period type is selected, specifying the date of start and end periods is not needed.
   4. In the Transport detection drop-down list select the Transport detection object, data of which is to be used to create the report (3).

   5. In the Lanes list set checkboxes next to those lanes data of which is to be included in the report (4).

      Note.

      In order to select all groups in the list click the All link. To uncheck all checkboxes click the None link.

   6. In the Vehicle groups list set checkboxes in those vehicle groups data of which is to be included in the report (5). The following vehicle groups are available:

      • Small vehicles (the group includes cars and motorcycles);
      • Medium vehicles (the group includes vehicles less than 12 m);
      • Large vehicles (the group includes vehicles more than 12 m and buses).

   7. In the Displayed data list set checkboxes next to those parameters which are to be included in the report (6).

      Note.

      In order to select all fields in the list click the All link. To uncheck all checkboxes click the None link.

4. Click Execute to create the report (7).

As a result the report in the selected form is displayed.
