To go to the monitoring mode of captured and recognized faces click the Monitor button in the Face recognition and search interface window.
Photo, number of recognition video camera, number of face recognition server, date and time of face capture are displayed for each captured face.
Note
Starting from Face Intellect 7.2 the photo in the list of captured faces is not duplicated - it is updated in the same cell while the tracker "sees" it. Change the value of the Face.RecognizeFacesSeparately parameter to 1 in order to change the mechanism of displaying faces (see Registry keys reference guide and Working with Windows OS registry).
If the Follow checkbox is set, the list of faces is scrolled up to the top when a new face is captured even if some face is selected in it. To disable automatic list scrolling, unset the Follow checkbox. In this case a face remains in the list until selection removal and the list is not scrolled up when new faces are captured.
If the captured face was recognized, then the data on the corresponding person from the face recognition database will be added to the information panel (1).
The color of information panel displays the level of similarity of captured face with the most corresponding face from the face recognition database.
Color of information panel | Similarity level |
Green | Low |
Yellow | Middle |
Red | High |
Note
Borders of similarity level are specified while configuring the Face monitor interface object (see the Face-Intellect software package. Administrator's Guide).
Note

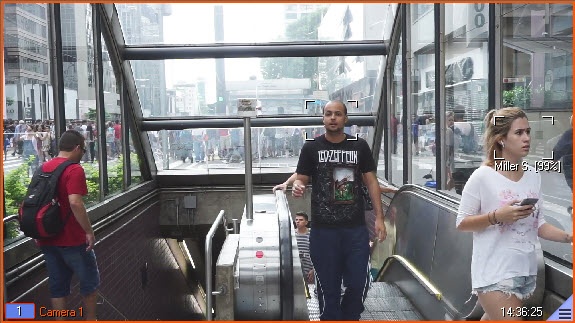

If the video from camera (used for face recognition) is transmitted to the Monitor interface object, then the full name is displayed below the face capture area (see Configuring video display on Video Surveillance Monitor).
All results of face search by the recognized face are displaying in the Search results section (2). Search result contains the following information:
- The image of the recognized face.
- The full name of recognized person.
- The similarity level of recognized face with face on the image.
- A comment.
- The date and time of search.
