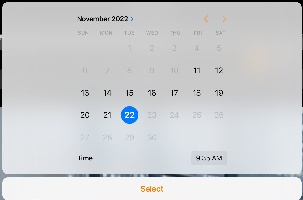

To proceed to the archive, in the live video viewing mode, click on the date and time in the lower right corner.
As a result, the panel will appear in the lower part of the screen. On this panel, select the exact point in time (1). To proceed to the selected point in time, click the Select button (2).
Note
If there is no archive record for the specified point in time, you will be positioned to the nearest moment in the archive towards the increase in time.
To switch to the viewing live video mode, click the Live (3) button.
Use the following buttons to control the playback:
- pause,
- play.

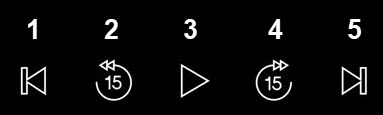

Use the following buttons to navigate in the archive:
и
- switching to the previous archive fragment or the next one. If there are alarms, you will be redirected by these alarm events. Otherwise, you will be redirected to the previous/next recording.
и
- switching 15 seconds back or forward along the archive regarding the current time.
For more precise navigation in the archive, you can use the timeline. Click the button to display or hide the timeline. As a result, the timeline with the display type specified in the settings will be displayed in the lower part of the screen (see Configuring the timeline display in the AxxonNet iOS mobile client). Using the timeline, you can navigate in the archive by swiping left and right.
You can change the timeline scale by using the - zoom in/
- zoom out buttons.
Note
To listen to an archive audio, it is necessary to select the appropriate microphone for the camera in the Web-server configuration (see Selecting and configuring cameras for the Web-server module).
