By default, the Client (main monitor and all additional monitors) is displayed in full screen mode.

It is possible to use window mode both on the main monitor and on the additional monitors.

To do this, do the following:

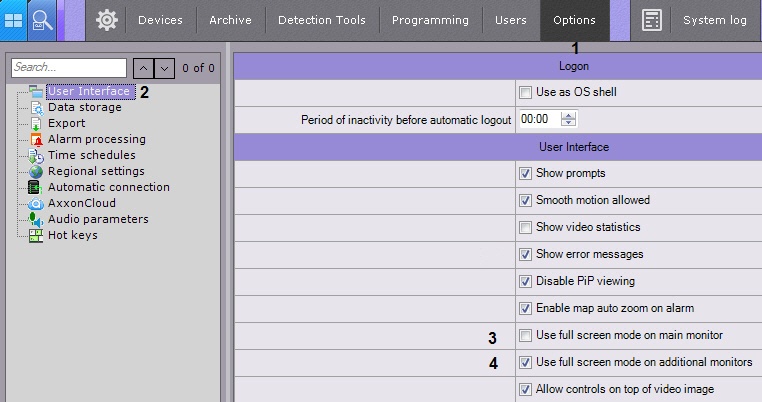

  1. Go to Settings → Options (1) → User Interface (2).
  2. To use window mode on the main monitor, clear the Use full screen on main monitor checkbox (3).
  3. To use window mode on the additional monitors, clear the Use full screen on additional monitors checkbox (4).
  4. Click the Apply button.
  5. Restart Axxon Next (see Shutting down an Axxon Next Client, Starting an Axxon Next Client).

The window mode is configured. The Axxon Next Client will be displayed in window mode on new start.
