Selecting a Server object displays statistical information about the available Server disks and created archives.

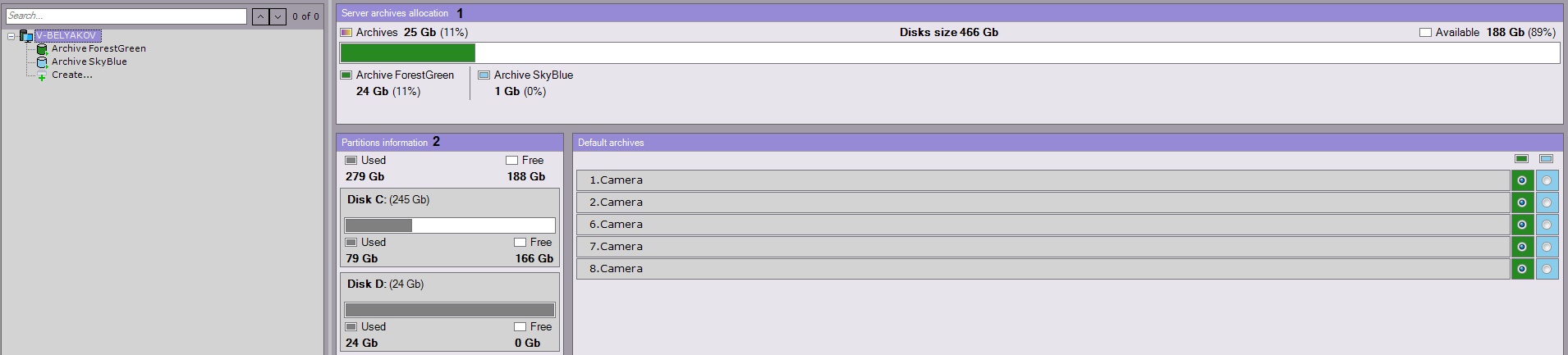

Figure 1 shows the overall balance of free disk space between the Server archives.

In addition, a list of disks is displayed, containing information about the total disk capacity, space used, and total free space (2).

When you select an archive, the following information is displayed:

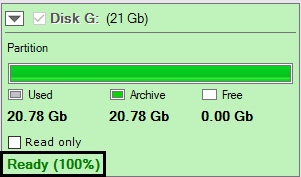

  1. The percentage of used space on each volume in the archive. This parameter indicates whether the volume's data is being rewritten. If the percentage is 100%, the new data is overwriting the old data.
  2. The approximate volume usage in percentage and gigabytes (2) is displayed in the Filled archive volume field of the Archive Parameters group.

When you update Axxon Next or restart the Server, or create the archive based on the existing volume etc., the archive is reindexed.

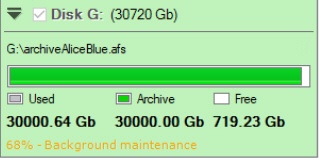

Reindexing progress bar is displayed.
